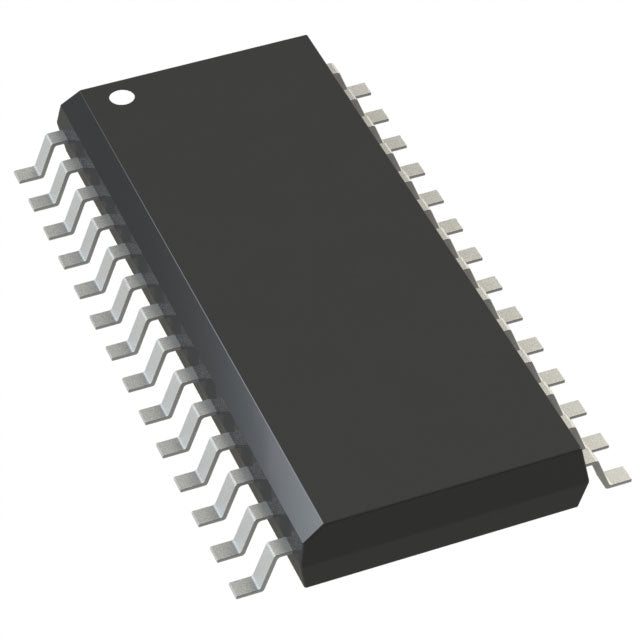

Microchip Technology PIC18F2620-I/SO
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.26 | $7.26 |
| 15+ | $7.03 | $105.45 |
| 25+ | $6.88 | $172.00 |
| 50+ | $6.49 | $324.50 |
| 100+ | $5.73 | $573.00 |
| N+ | $1.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 18F |
| Packaging | Tube | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 3.8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 5.5V |
| Data Converters | A/D 10x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SOIC |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| ROHS |  |
The PIC18F2620-I/SO is an 8-bit MCU from Microchip, running at 40MHz. It offers 64KB flash and 3.8KB RAM, with a supply range of 4.2V to 5.5V. Housed in a 28-SOIC package, it includes HLVD, POR, PWM, and WDT, making it a reliable choice for 5V industrial and automotive applications.
- 5V operation: Directly interfaces with legacy 5V peripherals without level shifting.
- 40MHz speed: Faster than many 8-bit MCUs, enabling more complex tasks.
- 64KB flash: Sufficient for large firmware with bootloaders.
- 28-SOIC package: Easy to solder and replace in existing designs.
Automotive Sensors
With 5V operation and 40MHz speed, it processes analog signals from pressure or temperature sensors in engine control units.
Industrial Actuators
Its PWM outputs drive valve or relay actuators in process control, with WDT ensuring fail-safe operation.
Consumer Electronics
In white goods, it manages user interfaces and motor timing, benefiting from 5V noise immunity.
Security Systems
The 64KB flash stores encryption keys and alarm logic for access control panels.
Test Equipment
Its 40MHz speed and 3.8KB RAM support waveform generation and data acquisition in handheld meters.
Lighting Control
PWM channels dim LED drivers in architectural lighting, with HLVD preventing erratic behavior during brownouts.
- Q: What is the operating voltage of the PIC18F2620-I/SO?
- A: It operates from 4.2V to 5.5V, making it compatible with 5V systems.
- Q: What is the maximum speed?
- A: It runs at 40MHz, providing fast 8-bit processing.
- Q: How much flash memory is available?
- A: It has 64KB of program memory (32K x 16).
- Q: What package is this?
- A: It is in a 28-SOIC (7.50mm width) package, suitable for through-hole or SMD.
- Q: Does it have analog features?
- A: Yes, it includes HLVD, POR, PWM, and WDT for robust operation.
