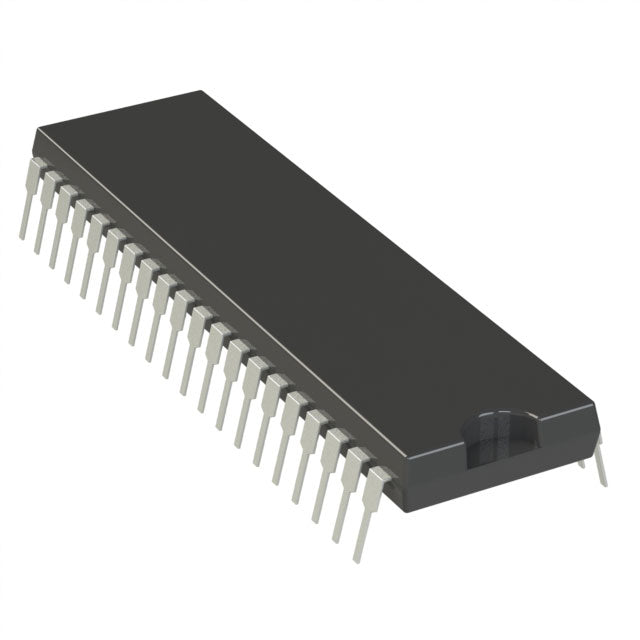

Microchip Technology PIC18F44K22-E/P
Regular price
$94,999.99
Regular price
$99,999.99
Sale price
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 18K |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 48MHz |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 768 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 30x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 40-PDIP |
| Package / Case | 40-DIP (0.600", 15.24mm) |
| ROHS |  |
The PIC18F44K22-E/P from Microchip is a rugged 8-bit MCU with 16KB flash and 768 bytes RAM. Operating from 2.3V to 5.5V at 48MHz, it features HLVD, PWM, and WDT in a 40-pin DIP package for high-temperature applications.
- Extended temperature range (-40°C to 125°C) – suitable for automotive and industrial.
- Wide supply voltage (2.3V-5.5V) – flexible power design.
- Through-hole DIP package – easy prototyping and maintenance.
- Integrated HLVD – enhances system reliability.
Automotive Engine Control
125°C rating and 5.5V operation handle under-hood environments.
Industrial Motor Drives
PWM and 48MHz speed enable precise speed control.
White Goods Appliances
DIP package simplifies through-hole assembly for washing machines.
Power Tools
Wide voltage range supports 12V-24V battery packs.
HVAC Controllers
HLVD monitors supply for reliable compressor sequencing.
Agricultural Electronics
Robust temperature range suits outdoor irrigation controllers.
- Q: What is the operating temperature range?
- A: -40°C to 125°C.
- Q: What is the supply voltage?
- A: 2.3V to 5.5V.
- Q: What package is this?
- A: 40-DIP.
- Q: Does it have HLVD?
- A: Yes, HLVD is included.
Base Product Number ：
PIC18F44K22
PIC18F44K22-E/P.pdf
- Q: What is the operating temperature range?
- A: -40°C to 125°C.
- Q: What is the supply voltage?
- A: 2.3V to 5.5V.
- Q: What package is this?
- A: 40-DIP.
- Q: Does it have HLVD?
- A: Yes, HLVD is included.
×
