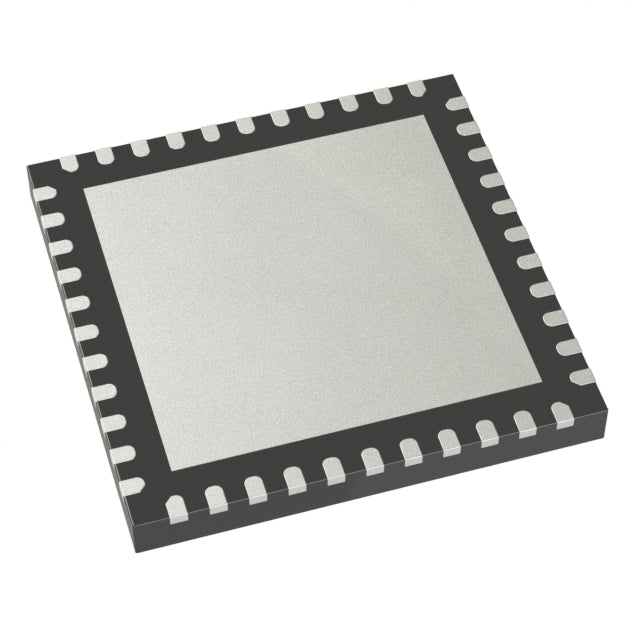

Microchip Technology PIC24F16KA304T-I/ML

Product Overview

The PIC24F16KA304T-I/ML is a high-performance 16-bit microcontroller from Microchip Technology's acclaimed PIC® XLP™ 24F series, engineered specifically for embedded and industrial applications that demand exceptional low-power consumption, robust connectivity, and long-term reliability. This advanced MCU combines a powerful 16-bit architecture with comprehensive peripheral integration, making it the ideal choice for OEMs, system integrators, and design engineers developing next-generation IoT devices, industrial control systems, medical instruments, and battery-powered applications.

Operating at 32MHz with 16KB of Flash program memory, 2KB RAM, and 512 bytes of EEPROM, the PIC24F16KA304T-I/ML delivers the processing power and storage capacity needed for complex firmware implementations. With 39 flexible I/O pins and an extensive suite of communication interfaces—including I2C, IrDA, LINbus, SPI, and UART/USART—this microcontroller seamlessly integrates into diverse system architectures and enables efficient interfacing with sensors, displays, wireless modules, and other peripherals.

Key Features & Technical Advantages

• High-Performance 16-Bit Architecture: 32MHz processing speed ensures efficient execution of demanding embedded algorithms, real-time control loops, and data processing tasks
• Comprehensive Connectivity Suite: Multiple communication protocols (I2C, IrDA, LINbus, SPI, UART/USART) enable seamless integration with a wide range of sensors, actuators, displays, and wireless communication modules
• Robust Memory Configuration: 16KB Flash program memory provides ample space for complex firmware, while 2KB RAM supports efficient data handling and 512-byte EEPROM enables non-volatile parameter storage
• Advanced Integrated Peripherals: Built-in Brown-out Detect/Reset, High/Low-Voltage Detect (HLVD), Power-on Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT) enhance system reliability and reduce external component count
• Precision Analog Capabilities: 16-channel 12-bit Analog-to-Digital Converter (ADC) enables accurate sensor interfacing, signal conditioning, and measurement applications
• Wide Operating Voltage Range: 1.8V to 3.6V supply voltage compatibility supports battery-powered designs, low-power applications, and flexible power management strategies
• Industrial Temperature Range: -40°C to 85°C operating temperature ensures reliable performance in harsh industrial, automotive, and outdoor environments
• Compact Surface Mount Package: 44-QFN (8x8mm) package with exposed pad optimizes board space utilization, thermal performance, and manufacturing efficiency
• 39 Flexible I/O Pins: Extensive GPIO count provides design flexibility for interfacing with multiple peripherals, sensors, and user interface elements
• Internal Oscillator: Reduces external component requirements and simplifies PCB design while maintaining accurate timing
• RoHS Compliant: Environmentally friendly design meets global regulatory standards and supports sustainable manufacturing practices
• XLP™ Technology: Microchip's eXtreme Low Power technology extends battery life in portable and remote applications

Target Applications

The PIC24F16KA304T-I/ML is ideally suited for a diverse range of embedded and industrial applications:

• Industrial Control Systems: PLCs, motor controllers, process automation, HVAC systems, and building management
• Medical Devices: Portable diagnostic equipment, patient monitoring systems, infusion pumps, and laboratory instruments
• Automotive Electronics: Body control modules, dashboard instrumentation, sensor interfaces, and auxiliary control systems
• IoT & Connected Devices: Smart sensors, wireless gateways, environmental monitoring, and edge computing nodes
• Battery-Powered Instruments: Handheld meters, data loggers, portable test equipment, and field instrumentation
• Consumer Electronics: Smart home devices, appliance controllers, and user interface systems
• Communication Equipment: Protocol converters, serial-to-Ethernet bridges, and industrial communication modules

Design & Integration Benefits

Engineers and system designers benefit from the PIC24F16KA304T-I/ML's comprehensive feature set and proven reliability:

• Reduced Bill of Materials: Integrated peripherals minimize external component requirements
• Faster Time-to-Market: Extensive development tools, libraries, and reference designs accelerate product development
• Long Lifecycle Availability: Microchip's commitment to long-term product support ensures supply continuity for production programs
• Scalable Architecture: Pin-compatible family members enable easy migration and product line expansion
• Proven Reliability: Automotive-grade quality and extensive qualification testing ensure robust performance

Why Choose HQICKEY for Your Microcontroller Needs?

HQICKEY is your trusted global partner for authentic semiconductor components with a focus on quality, reliability, and customer success:

• 100% Authentic Components: We guarantee genuine Microchip products with full traceability and manufacturer certification
• Long Lifecycle Availability: Extensive inventory and supply chain partnerships ensure component availability for long-term production requirements
• Dedicated Technical Support: Our engineering team provides expert guidance for component selection, design-in support, and troubleshooting
• Global Shipping & Fulfillment: Fast, reliable worldwide shipping with flexible logistics options to meet your production schedules
• Production-Scale Quantities: From prototype quantities to high-volume production runs, we support your business at every stage
• Quality Assurance: Rigorous quality control processes and proper handling ensure components arrive in perfect condition
• Competitive Pricing: Direct sourcing and efficient operations deliver exceptional value without compromising quality

Technical Specifications Summary

The complete technical specifications are detailed in the table above. Key highlights include:

• 16-bit PIC architecture with 32MHz maximum operating frequency
• 16KB Flash program memory (5.5K x 24 instruction words)
• 2KB RAM for data storage and processing
• 512-byte EEPROM for non-volatile data retention
• 16-channel 12-bit ADC for precision analog measurements
• Multiple communication interfaces: I2C, IrDA, LINbus, SPI, UART/USART
• Comprehensive peripheral set: PWM, WDT, Brown-out Detection, HLVD
• Wide voltage range: 1.8V to 3.6V
• Industrial temperature range: -40°C to 85°C
• Compact 44-QFN (8x8mm) surface mount package

Ordering & Availability

The PIC24F16KA304T-I/ML is available now from HQICKEY with fast global shipping. Our inventory management system ensures rapid order processing and reliable delivery to support your development and production schedules. Contact our sales team for volume pricing, lead times, and custom logistics solutions.
