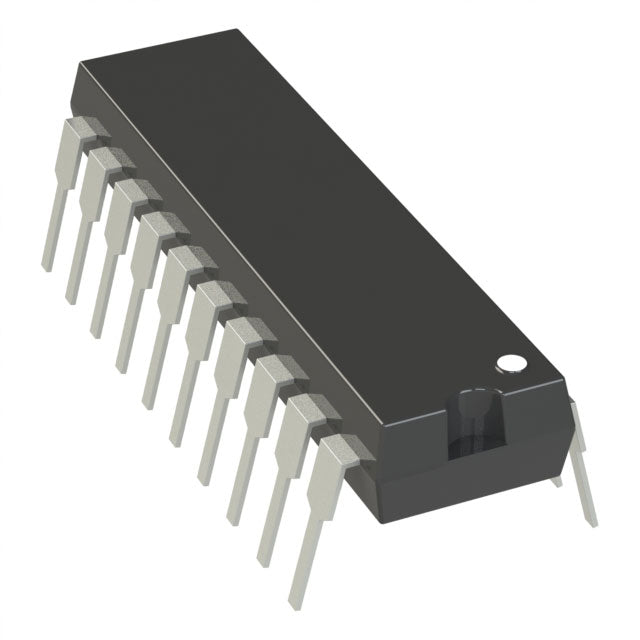

Microchip Technology PIC24F32KA301-I/P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.16 | $4.16 |
| 15+ | $4.03 | $60.45 |
| 25+ | $3.94 | $98.50 |
| 50+ | $3.72 | $186.00 |
| 100+ | $3.29 | $329.00 |
| N+ | $0.66 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 24F |
| Packaging | Tube | |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 18 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-PDIP |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| ROHS |  |
The PIC24F32KA301-I/P is a 16-bit PIC microcontroller from Microchip. It runs at 32MHz with 32KB flash and 2KB RAM. Operating from 1.8V to 3.6V, it includes Brown-out Detect, HLVD, POR, PWM, and WDT. The 20-DIP package is suitable for low-power and industrial applications.
- Low voltage operation (1.8V) extends battery life.
- 16-bit core provides better precision than 8-bit MCUs.
- Integrated HLVD and Brown-out Detect enhance reliability.
- DIP package enables easy breadboard prototyping.
Battery-Powered Data Loggers
1.8V operation and 32KB flash support long-term logging with low power consumption.
Portable Medical Instruments
HLVD and POR ensure safe operation in glucose meters or blood pressure monitors.
Industrial Sensor Interfaces
20-pin DIP package simplifies prototyping; 2KB RAM buffers sensor data.
Home Automation Controllers
PWM outputs drive dimmers or motor valves; 32MHz speed handles communication protocols.
Automotive Aftermarket Accessories
Wide temperature range (-40°C to 85°C) suits interior modules like seat control.
Embedded Education
Through-hole DIP package is ideal for university labs teaching 16-bit MCU programming.
- Q: What is the supply voltage?
- A: 1.8V to 3.6V.
- Q: What package is available?
- A: 20-DIP (0.300", 7.62mm).
- Q: What is the program memory size?
- A: 32KB (11K x 24).
- Q: Does it have PWM?
- A: Yes, PWM is included.
