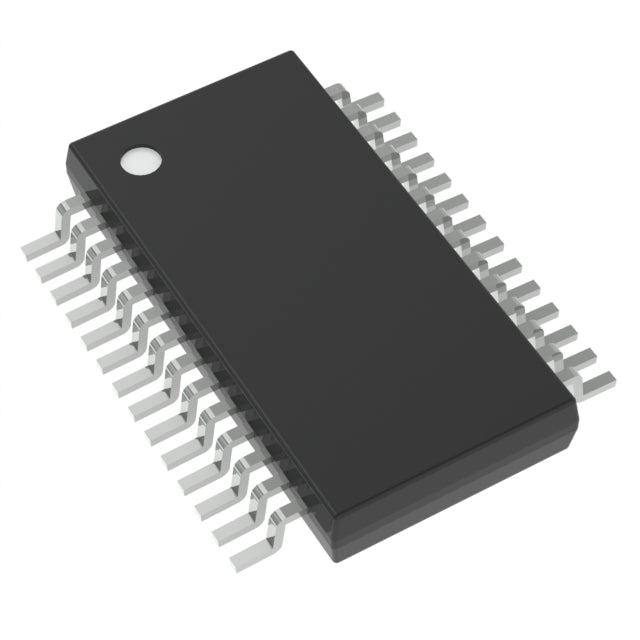

Microchip Technology PIC24F32KA302-E/SS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.23 | $4.23 |
| 15+ | $4.09 | $61.35 |
| 25+ | $4.01 | $100.25 |
| 50+ | $3.78 | $189.00 |
| 100+ | $3.34 | $334.00 |
| N+ | $0.67 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 24F |
| Packaging | Tube | |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 24 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 13x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The Microchip PIC24F32KA302-E/SS is a 16-bit microcontroller with a 32MHz core and 32KB Flash. It features HLVD, PWM, and multiple communication interfaces in a space-saving 28-pin SSOP package. Designed for harsh environments, it operates from -40°C to +125°C and supports a wide 1.8V to 3.6V supply range.
- Extended Temperature Range: -40°C to +125°C ensures reliable operation in automotive and industrial settings.
- Voltage Monitoring: Integrated HLVD provides early warning of power supply issues.
- Low Voltage Operation: 1.8V minimum supply enables energy-efficient designs.
- Compact Package: 28-SSOP saves PCB space for space-constrained applications.
Automotive Body Electronics
The extended temperature range and HLVD make it ideal for controlling lighting, windows, and seat modules in vehicles.
Industrial Sensor Interfaces
With 2K RAM and multiple serial ports, it can aggregate data from temperature, pressure, and flow sensors in factory settings.
Battery Management Systems
Its low 1.8V operation and HLVD are perfect for monitoring cell voltages and managing charge/discharge cycles in portable battery packs.
HVAC Controllers
The PWM outputs and robust reset circuitry enable precise control of fans and compressors in commercial HVAC systems.
Smart Meters
Low power consumption and reliable operation support long-term deployment in utility metering infrastructure.
Medical Monitoring Equipment
The wide voltage range and small SSOP package fit well into compact, low-power patient monitoring devices.
- Q: What is the operating temperature range of the PIC24F32KA302-E/SS?
- A: This device is rated for -40°C to +125°C, suitable for extreme automotive and industrial environments.
- Q: What is the maximum CPU speed?
- A: It operates at up to 32MHz, balancing performance with power efficiency.
- Q: Does it have a High/Low Voltage Detect (HLVD) module?
- A: Yes, it includes HLVD for monitoring supply voltage and triggering resets or interrupts on voltage excursions.
- Q: What is the program memory size?
- A: It provides 32KB of Flash memory organized as 11K x 24-bit words.
