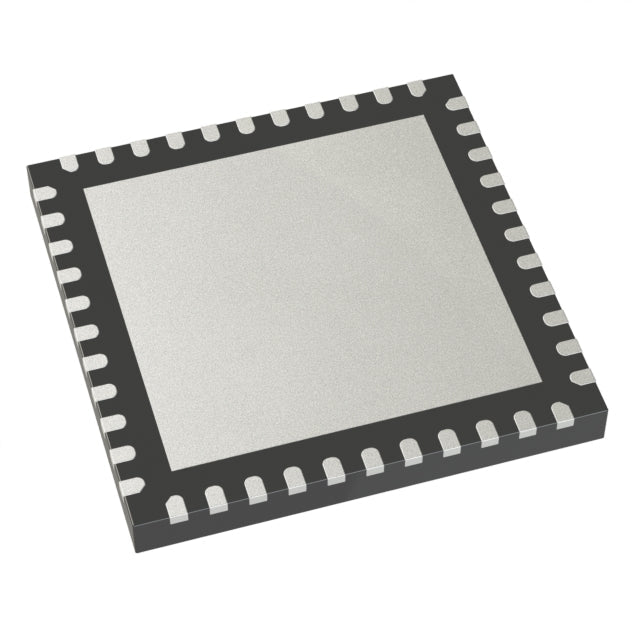

Microchip Technology PIC24F32KA304-E/ML
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $17.12 | $17.12 |
| 15+ | $3.94 | $59.10 |
| 25+ | $3.85 | $96.25 |
| 50+ | $3.64 | $182.00 |
| 100+ | $3.21 | $321.00 |
| N+ | $0.64 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 24F |
| Packaging | Tube | NULL |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, HLVD, POR, PWM, WDT |
| Number of I/O | 39 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-QFN (8x8) |
| Package / Case | 44-VQFN Exposed Pad |
| ROHS |  |
The PIC24F32KA304-E/ML is a 16-bit PIC microcontroller from Microchip, optimized for low-voltage operation from 1.8V to 3.6V. It runs at 32MHz with 32KB program memory and 2K x 8 RAM. Featuring HLVD, PWM, and robust protection, it is designed for battery-powered and energy-efficient applications.
- Ultra-Low Voltage Operation: Down to 1.8V for battery-powered designs.
- High Efficiency: Low power consumption extends battery life.
- Integrated HLVD: Ensures stable operation under voltage fluctuations.
- Compact Package: VQFN-44 saves board space.
Battery-Powered IoT Devices
Operate down to 1.8V, maximizing battery life in wireless sensor nodes and wearables.
Energy Harvesting Systems
Compatible with low-voltage energy harvesters, enabling self-powered embedded systems.
Portable Instrumentation
Use the 32MHz core for data acquisition and processing in handheld meters.
Medical Wearables
Low voltage and low power make it suitable for continuous health monitoring devices.
Smart Home Controllers
Power from 3V coin cells or Li-ion batteries for smart locks and thermostats.
Embedded Computing
Serve as a low-power host controller for sensors and communication modules.
- Q: What is the supply voltage range?
- A: 1.8V to 3.6V.
- Q: What is the maximum speed?
- A: 32MHz.
- Q: What package is available?
- A: 44-VQFN Exposed Pad.
- Q: Does it have HLVD?
- A: Yes, it includes High/Low Voltage Detect.
PIC24F32KA304-E/ML.pdf
