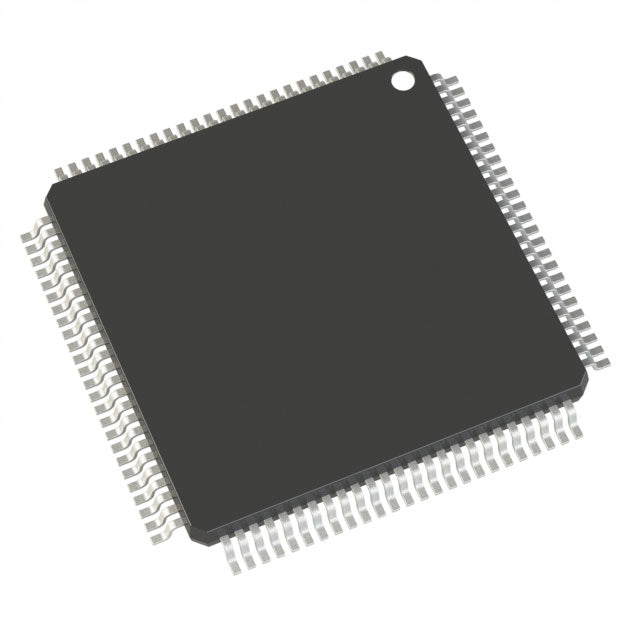

Microchip Technology PIC24FJ256DA210T-I/PT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.98 | $9.98 |
| 15+ | $9.67 | $145.05 |
| 25+ | $9.46 | $236.50 |
| 50+ | $8.93 | $446.50 |
| 100+ | $7.88 | $788.00 |
| N+ | $1.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 24F |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, GFX, LVD, POR, PWM, WDT |
| Number of I/O | 84 |
| Program Memory Size | 256KB (85.5K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 96K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Data Converters | A/D 24x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TQFP (12x12) |
| Package / Case | 100-TQFP |
| ROHS |  |
The PIC24FJ256DA210T-I/PT from Microchip Technology is a 16-bit PIC microcontroller with a dedicated graphics engine. It features 256KB of Flash and 96KB of SRAM, running at 32MHz. The 100-TQFP package and 2.2V to 3.6V supply range make it suitable for advanced embedded graphics applications.
- Integrated GFX engine: Hardware acceleration for graphical user interfaces.
- Large SRAM: 96KB supports high-resolution frame buffers.
- High-speed processing: 32MHz 16-bit core for responsive applications.
- Comprehensive safety: Includes LVD, POR, and WDT for robust operation.
Graphical User Interfaces
The integrated GFX engine accelerates 2D graphics rendering, making it ideal for TFT LCD displays in industrial HMI panels.
Portable Medical Devices
With 96KB SRAM, it can handle image buffering for handheld ultrasound or patient monitors.
Smart Home Displays
The 32MHz PIC core and graphics support enable smooth animations for thermostat and security system interfaces.
Automotive Dashboards
Its robust feature set including LVD and WDT ensures reliable operation in vehicle instrument clusters.
Point-of-Sale Terminals
The 100-TQFP package and large memory support complex payment processing and display graphics.
Test & Measurement Equipment
High-resolution waveform display and data logging are possible with the 256KB Flash and 96KB SRAM.
- Q: What is the core processor of the PIC24FJ256DA210T-I/PT?
- A: It uses a 16-bit PIC core.
- Q: What is the maximum speed?
- A: It operates at up to 32MHz.
- Q: How much program memory does it have?
- A: It has 256KB of Flash memory (85.5K x 24 bits).
- Q: Does it have graphics support?
- A: Yes, it includes a GFX (Graphics) feature for display applications.
