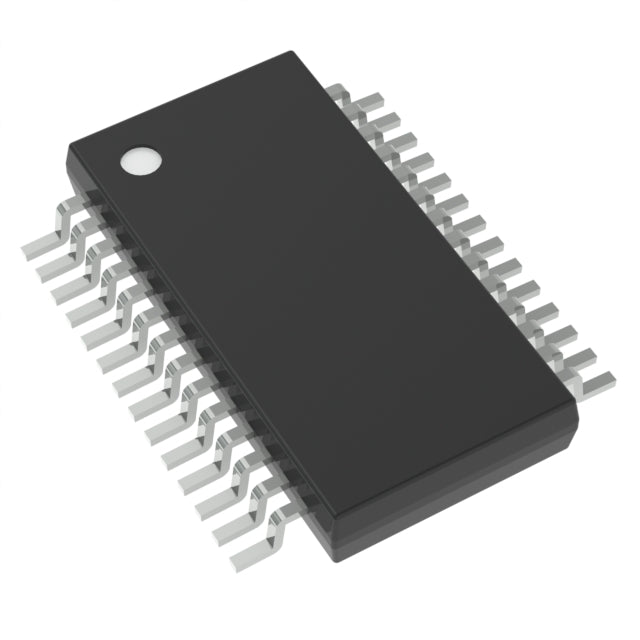

Microchip Technology PIC24FJ32GA102-E/SS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.56 | $13.56 |
| 15+ | $3.12 | $46.80 |
| 25+ | $3.05 | $76.25 |
| 50+ | $2.88 | $144.00 |
| 100+ | $2.54 | $254.00 |
| N+ | $0.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 24F |
| Packaging | Tube | NULL |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 21 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 10x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SSOP |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| ROHS |  |
The Microchip PIC24FJ32GA102-E/SS is a 16-bit microcontroller with a PIC core running at 32MHz. It offers 32KB of flash and 8KB of RAM, operating from 2V to 3.6V. Packaged in a 28-pin SSOP, it features brown-out detection, LVD, POR, PWM, and WDT. Its extended temperature range of -40°C to 125°C makes it ideal for demanding industrial applications.
- Extended temperature range (-40°C to 125°C): Handles extreme thermal conditions without derating.
- Large 8KB RAM: Enables complex data buffering and state machines.
- Low 2V minimum supply: Supports single-cell battery operation.
- Compact 28-SSOP package: Fits space-limited PCBs while providing 21 I/O pins.
High-Temperature Industrial Sensors
The 125°C rating allows operation near engines, furnaces, and other heat sources without active cooling.
Portable Data Loggers
With 8KB RAM and low 2V operation, it can buffer sensor data for extended periods in battery-powered loggers.
Motor Control for Pumps
PWM outputs and brown-out detection ensure reliable speed control in water circulation pumps.
Smart Lighting Ballasts
The 16-bit core and 32MHz speed handle complex dimming algorithms for LED drivers.
Medical Device Calibration Units
Its precise timing and wide temperature range support calibration equipment used in sterilization processes.
Automotive Aftermarket Accessories
Operating from -40°C to 125°C, it suits seat heater controllers and mirror adjustment modules.
- Q: What is the maximum operating temperature?
- A: This device operates up to 125°C, making it suitable for high-temperature environments.
- Q: What core architecture does it use?
- A: It uses the PIC 16-bit core running at 32MHz.
- Q: What is the supply voltage range?
- A: The supply voltage is 2V to 3.6V.
- Q: How much program memory does it have?
- A: It has 32KB of flash memory (11K x 24-bit words).
- Q: What package is available?
- A: It comes in a 28-pin SSOP package.
