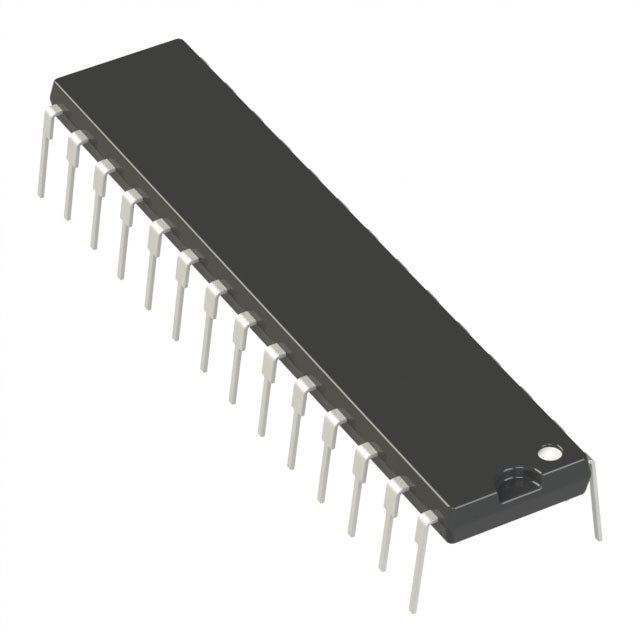

Microchip Technology PIC24FJ32GA102-I/SP
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.96 | $13.96 |
| 15+ | $3.21 | $48.15 |
| 25+ | $3.14 | $78.50 |
| 50+ | $2.97 | $148.50 |
| 100+ | $2.62 | $262.00 |
| N+ | $0.52 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 24F |
| Packaging | Tube | NULL |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 21 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 10x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 28-SPDIP |
| Package / Case | 28-DIP (0.300", 7.62mm) |
| ROHS |  |
The PIC24FJ32GA102-I/SP is a 16-bit microcontroller from Microchip with 32KB flash and 8KB RAM. Operating at 32MHz and 2.0-3.6V, it integrates PWM, LVD, and brown-out detection. The 28-pin DIP package is ideal for through-hole prototyping and industrial control applications.
- Wide voltage range (2V-3.6V): Supports battery and regulated power supplies.
- Integrated LVD and PWM: Reduces external circuitry for power monitoring and control.
- 32KB flash memory: Ample space for complex firmware.
- 28-pin DIP package: Easy to prototype and solder in industrial designs.
Battery Management
With 2V minimum operation and LVD, it monitors and protects lithium-ion battery packs.
IoT Sensor Nodes
Low power consumption and 32KB flash enable edge processing in wireless sensor networks.
Industrial Control Panels
The 28-pin DIP package and robust WDT make it suitable for PLC I/O modules.
Consumer Appliances
PWM outputs drive motor speed controls in washing machines and fans.
Automotive Body Electronics
Wide temperature range and 3.3V operation support window lift and mirror control modules.
Medical Monitoring
Compact DIP package and low-voltage operation fit portable patient monitors.
- Q: What is the core speed of the PIC24FJ32GA102-I/SP?
- A: It runs at 32MHz, providing efficient 16-bit performance for general-purpose control.
- Q: What is the program memory size?
- A: It has 32KB of flash memory (11K x 24-bit words).
- Q: What voltage range does it support?
- A: It operates from 2V to 3.6V, allowing flexible low-power designs.
- Q: Does it include LVD and PWM?
- A: Yes, it features Low-Voltage Detect, PWM, POR, WDT, and Brown-out Reset.
