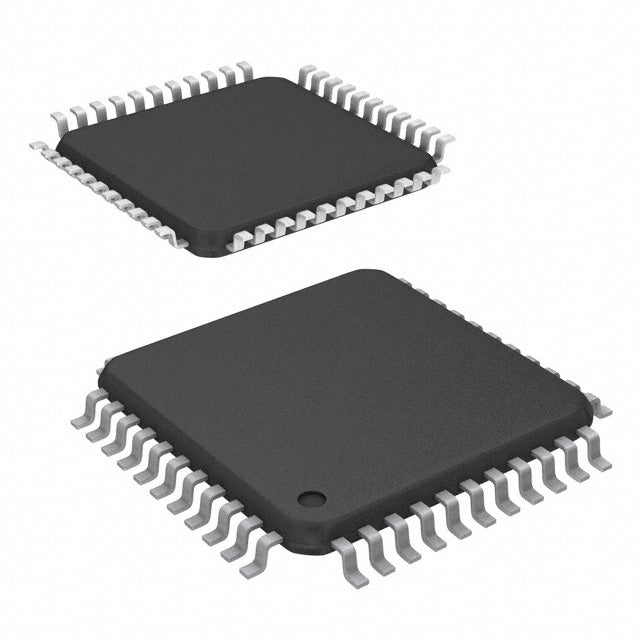

Microchip Technology PIC24FJ32GA104-I/PT
Regular price
$3.92
Regular price
$4.13
Sale price
$3.92
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.92 | $3.92 |
| 15+ | $3.80 | $57.00 |
| 25+ | $3.72 | $93.00 |
| 50+ | $3.51 | $175.50 |
| 100+ | $3.10 | $310.00 |
| N+ | $0.62 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® XLP™ 24F |
| Packaging | Tray | |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LVD, POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 13x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-TQFP (10x10) |
| Package / Case | 44-TQFP |
| ROHS |  |
The PIC24FJ32GA104-I/PT from Microchip Technology is a 16-bit PIC MCU running at 32MHz. It features 32KB flash and 8KB RAM. The device operates from 2V to 3.6V and includes brown-out detect, LVD, POR, PWM, and WDT. Housed in a 44-TQFP package, it operates from -40°C to 85°C, ideal for battery-powered and portable applications.
- Low voltage operation: 2V minimum extends battery life.
- LVD protection: Monitors supply voltage to prevent data corruption.
- Large RAM: 8KB supports complex data buffering.
- Compact TQFP: 44-pin package balances I/O and size.
Battery Management Systems
2V operation and LVD monitor cell voltage in lithium-ion battery packs.
Sensor Fusion
32MHz PIC core processes accelerometer and gyroscope data for drones.
Portable Instruments
8KB RAM buffers high-resolution ADC samples for multimeters.
Smart Agriculture
Low power consumption suits solar-powered soil moisture sensors.
Medical Wearables
Compact 44-TQFP package fits insulin pump form factors.
Building Automation
PWM outputs control HVAC damper actuators with precision.
- Q: What core does it use?
- A: PIC 16-bit.
- Q: What is the maximum speed?
- A: 32MHz.
- Q: How much flash memory is available?
- A: 32KB.
- Q: What is the supply voltage range?
- A: 2V to 3.6V.
- Q: Does it include LVD?
- A: Yes, includes LVD, brown-out detect, POR, PWM, and WDT.
Base Product Number ：
PIC24FJ32GA104
PIC24FJ32GA104-I/PT.pdf
