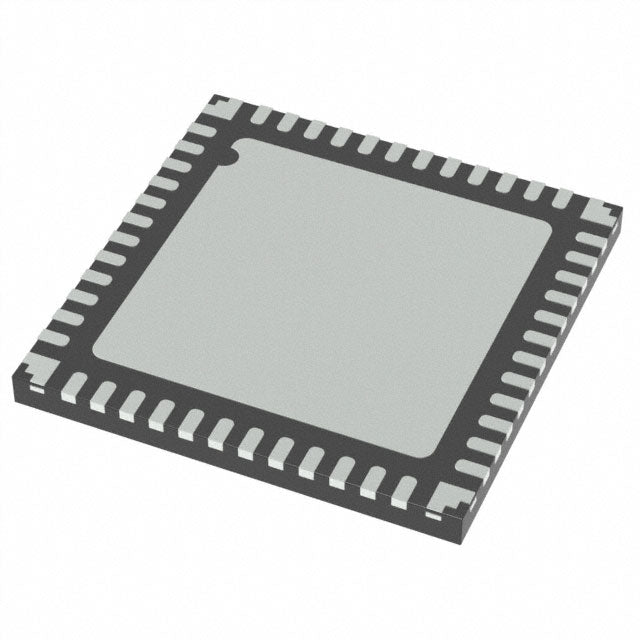

Microchip Technology PIC24FJ32GU205-E/M4
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.32 | $8.32 |
| 15+ | $1.91 | $28.65 |
| 25+ | $1.87 | $46.75 |
| 50+ | $1.77 | $88.50 |
| 100+ | $1.56 | $156.00 |
| N+ | $0.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 24F |
| Packaging | Tube | Tube |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, HLVD, I2S, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 32KB (11K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 13x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-UQFN (6x6) |
| Package / Case | 48-UFQFN Exposed Pad |
| ROHS |  |
The PIC24FJ32GU205-E/M4 from Microchip Technology is a 16-bit MCU with a 32MHz PIC core. It offers 32KB flash and 8KB SRAM, operating from 2V to 3.6V. The 48-UFQFN package includes advanced peripherals like I2S, DMA, and HLVD. Designed for -40°C to 125°C, it suits industrial and automotive applications requiring mixed-signal processing.
- Integrated I2S: Enables direct digital audio interfacing without external codecs.
- High-temperature operation: 125°C rating supports harsh environments.
- Efficient DMA: Reduces CPU load for data streaming and peripheral management.
- Compact 48-UFQFN: Saves board space while providing 48 I/O options.
USB Audio Interfaces
The integrated I2S and DMA enable high-fidelity audio streaming to DACs in mixing consoles.
Industrial Sensor Hubs
With 8KB RAM and multiple PWM channels, it aggregates data from temperature and pressure sensors in factory networks.
Portable Data Loggers
The 2V minimum supply and low-power modes allow long-term logging in remote environmental monitors.
Motor Control for Drones
Its 32MHz speed and PWM outputs drive ESC signals with precise timing for quadcopter stability.
Human-Machine Interfaces
The UFQFN package and HLVD support capacitive touch buttons in compact control panels.
Automotive Aftermarket Accessories
The 125°C rating makes it suitable for LED lighting controllers or seat memory modules.
- Q: What is the core and speed?
- A: It uses a PIC 16-bit core running at up to 32MHz.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V.
- Q: How much program memory and RAM does it have?
- A: It has 32KB flash (11K x 24) and 8KB SRAM.
- Q: What is the temperature range?
- A: It is rated for -40°C to 125°C.
- Q: What package is available?
- A: It comes in a 48-UFQFN exposed pad package.
