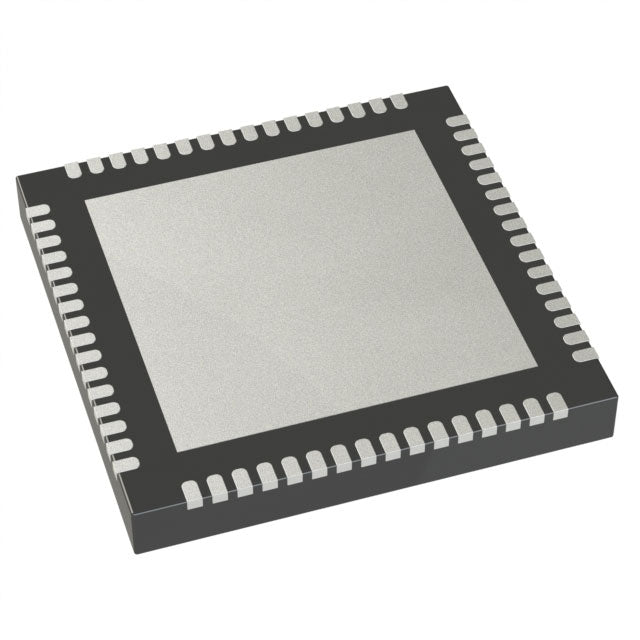

Microchip Technology PIC24HJ64GP206A-I/MR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 24H |
| Packaging | | Tube |
| Core Processor | PIC |
| Core Size | 16-Bit |
| Speed | 40 MIPs |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 53 |
| Program Memory Size | 64KB (22K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 18x10b/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-VQFN (9x9) |
| Package / Case | 64-VFQFN Exposed Pad |
| ROHS |  |
The Microchip PIC24HJ64GP206A-I/MR is a high-performance 16-bit microcontroller designed for a broad range of embedded control applications. With a 40 MIPs core, it provides substantial processing power for real-time tasks. It features 64KB of flash and 8K x 8 RAM, offering a solid memory footprint. Its comprehensive set of peripherals, including DMA and PWM, makes it a flexible and reliable choice for industrial, automotive, and consumer applications.
- High-Speed 40 MIPs Performance: Handles complex real-time tasks efficiently.
- DMA Controller: Enables efficient data movement without CPU overhead.
- Large Memory Footprint: 64KB flash and 8K RAM for complex applications.
- Wide Operating Temperature Range: Suitable for harsh environments (-40°C to 85°C).
General-Purpose Industrial Control
Its 40 MIPs performance and rich peripheral set make it suitable for PLCs, industrial sensors, and control panels.
Power Supply Control
Use its high-speed PWM and ADC for digital control of switch-mode power supplies.
Automotive Body Electronics
Handle tasks like lighting control, window lifts, and seat control with its robust I/O and communication interfaces.
Medical Monitoring Devices
Process physiological signals with its fast ADC and DMA for patient monitoring systems.
Data Acquisition Systems
Its DMA and multiple ADC channels enable high-throughput data logging and analysis.
Consumer Appliances
Control motors, displays, and user interfaces in washing machines, dishwashers, and refrigerators.
- Q: What is the core speed?
- A: It operates at 40 MIPs.
- Q: What is the program memory size?
- A: It has 64KB (22K x 24) of flash memory.
- Q: What is the RAM size?
- A: It has 8K x 8 of RAM.
- Q: What is the operating voltage?
- A: It operates from 3V to 3.6V.
- Q: What package is available?
- A: It comes in a 64-VFQFN exposed pad package.
