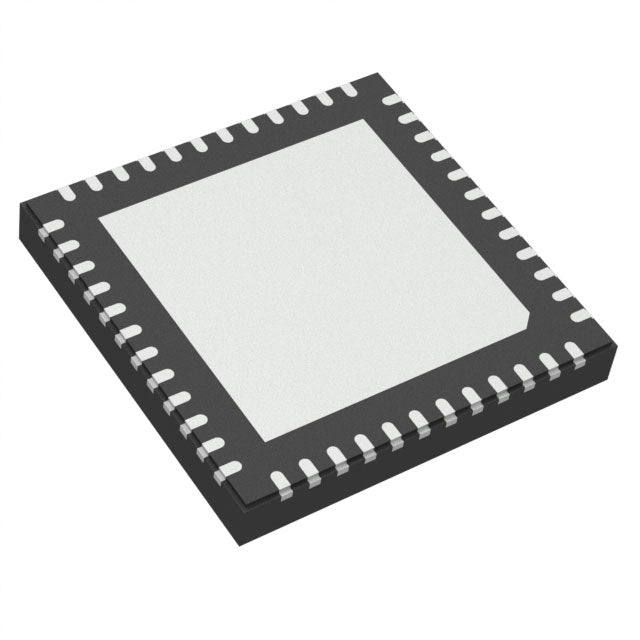

Microchip Technology PIC32CM1216JH01048T-I/U5B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.40 | $4.40 |
| 15+ | $1.01 | $15.15 |
| 25+ | $0.99 | $24.75 |
| 50+ | $0.94 | $47.00 |
| 100+ | $0.83 | $83.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | PIC® 32CM JH |
| Packaging | Tape & Reel (TR) | |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 12x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Memory Type | Surface Mount, Wettable Flank |
| Grade | - |
| Qualification | - |
| Package / Case | 48-VQFN (7x7) |
| Supplier Device Package | 48-VFQFN Exposed Pad |
| ROHS |  |
The PIC32CM1216JH01048T-I/U5B from Microchip is a 48MHz ARM Cortex-M0+ MCU with 128KB flash and 16KB SRAM. It operates from 2.7V to 5.5V and is housed in a 48-VFQFN package. Features include brown-out detection, POR, PWM, and WDT, making it a robust choice for automotive and industrial applications.
- 128KB flash – ample space for complex firmware and bootloaders.
- Wide supply range (2.7-5.5V) – compatible with 3.3V and 5V logic.
- Integrated brown-out detect/reset – improves system reliability.
- 48-VFQFN package – good thermal performance with exposed pad.
Automotive Body Electronics
2.7-5.5V supply and 48MHz performance handle LIN and CAN gateway tasks.
Industrial Automation
128KB flash allows complex control algorithms with OTA update capability.
Smart Sensors
Integrated PWM and brown-out detection ensure stable operation in noisy environments.
Consumer Appliances
Low-cost 48-VFQFN package fits compact PCB layouts for washing machines and microwaves.
Power Tools
Wide voltage range tolerates battery voltage sag during high-load operation.
Building Automation
Reliable -40 to 85°C operation for HVAC controllers and lighting systems.
- Q: What is the core and speed?
- A: ARM Cortex-M0+ at 48MHz.
- Q: How much flash and RAM?
- A: 128KB flash and 16KB SRAM.
- Q: What voltage does it need?
- A: 2.7V to 5.5V.
- Q: What package is this?
- A: 48-VFQFN exposed pad.
