Microchip Technology PIC32MZ2048EFH100-250I/PF

Skip to product information
1 of 1

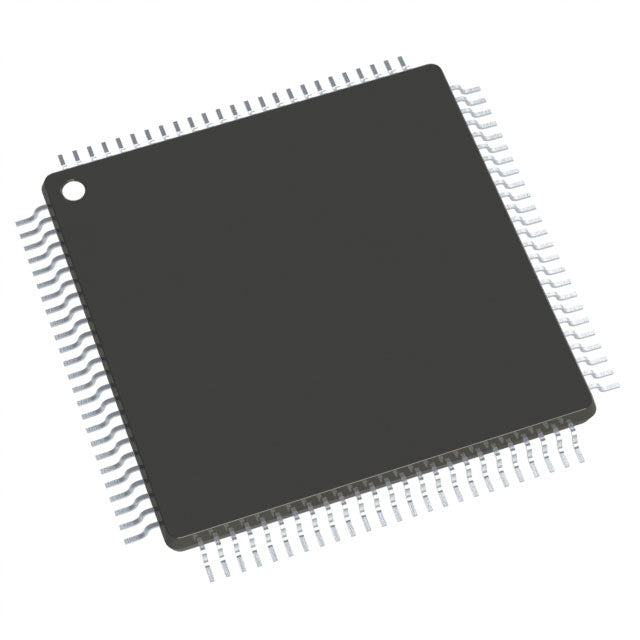

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $16.09
Regular price $16.94 Sale price $16.09
Sale Sold out
Quantity Unit Price Total Price
1 $16.09 $16.09
15+ $15.58 $233.70
25+ $15.25 $381.25
50+ $14.40 $720.00
100+ $12.71 $1,271.00
N+ $2.54 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Tray |
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 250MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 78
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 40x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Grade -
Qualification AEC -
Mounting Type Surface Mount
Supplier Device Package 100-TQFP (14x14)
Package / Case 100-TQFP
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The Microchip PIC32MZ2048EFH100-250I/PF is a high-performance 32-bit microcontroller built on the MIPS32 M-Class core, running at 250 MHz. It offers 2 MB of flash memory and 512 KB of RAM, making it suitable for complex embedded applications. With a wide voltage range of 2.1V to 3.6V and a 100-TQFP package, it balances power efficiency with processing capability. Integrated peripherals include DMA, PWM, I2S, and watchdog timers, supporting diverse industrial and consumer applications.

  • High-Speed Processing: 250 MHz MIPS32 core delivers rapid execution for real-time tasks.
  • Large Memory: 2 MB flash and 512 KB RAM accommodate extensive code and data buffers.
  • Rich Peripheral Set: DMA, PWM, and I2S reduce CPU load and enable advanced interfacing.
  • Wide Voltage Range: 2.1V-3.6V supports battery-powered and energy-efficient designs.
  • Reliable Operation: Brown-out detection and watchdog timer enhance system stability.

Industrial Automation

With a 250 MHz MIPS32 M-Class core and 512 KB RAM, it handles real-time control loops and multi-axis motion control with minimal latency.

Medical Device Monitoring

The 2 MB flash and DMA support enable continuous data logging from sensors while the CPU processes complex algorithms for patient monitoring systems.

Audio Processing

Integrated I2S and high-speed PWM allow for high-fidelity digital audio playback and processing in professional sound equipment.

Automotive Telematics

Operating at -40°C to 85°C, it suits in-vehicle infotainment and telematics units requiring robust performance and reliable communication interfaces.

Smart Grid Infrastructure

Its low power consumption (2.1V-3.6V) and WDT ensure reliable operation in remote power monitoring and control nodes.

Robotics Control

The combination of DMA, PWM, and fast interrupt handling supports precise servo control and sensor fusion in advanced robotics.

Q: What is the maximum operating frequency of the PIC32MZ2048EFH100-250I/PF?
A: It operates at up to 250 MHz, providing high-performance processing for demanding applications.
Q: What is the program memory size?
A: It features 2 MB of flash program memory, ideal for complex firmware.
Q: What is the operating voltage range?
A: The supply voltage range is 2.1V to 3.6V, supporting low-power designs.
Q: What package is available?
A: It comes in a 100-TQFP package, suitable for compact PCB layouts.
Q: Does it include DMA and PWM controllers?
A: Yes, it integrates DMA, PWM, and other peripherals like I2S and WDT.
Base Product Number : PIC32MZ2048EFH100
100-TQFP 250MHz 2MB Flash 32-bit MCU 512KB RAM Audio DMA I2S Industrial Medical MIPS32 M-Class PWM
