Microchip Technology PIC32MZ2048EFH100T-250I/GJX

Skip to product information
1 of 1

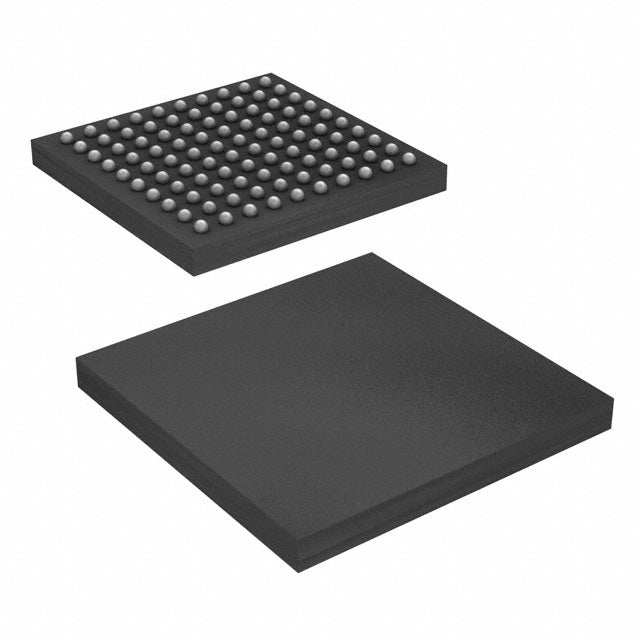

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $15.48
Regular price $16.29 Sale price $15.48
Sale Sold out
Quantity Unit Price Total Price
1 $15.48 $15.48
15+ $14.99 $224.85
25+ $14.66 $366.50
50+ $13.85 $692.50
100+ $12.22 $1,222.00
N+ $2.44 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Cut Tape (CT) | NULL
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 252MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 78
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 40x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Grade -
Qualification AEC -
Mounting Type Surface Mount
Supplier Device Package 100-TFBGA (7x7)
Package / Case 100-TFBGA
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The Microchip PIC32MZ2048EFH100 is a high-performance 32-bit microcontroller built on the MIPS32 M-Class core. Running at 252MHz, it delivers exceptional processing power for compute-intensive applications. With 2MB of Flash and 512KB of RAM, it can handle large code bases and data buffers. Its feature set includes DMA, I2S, PWM, and robust reset and monitoring functions. The 100-TFBGA package is ideal for space-constrained designs requiring high I/O density.

  • Exceptional Processing Power: The 252MHz MIPS32 core outperforms typical MCUs, enabling complex algorithms and real-time responses.
  • Large Memory Footprint: 2MB Flash and 512KB RAM support sophisticated applications and large data sets without external memory.
  • Advanced DMA Controller: Reduces CPU load by handling data transfers between peripherals and memory, improving system efficiency.
  • Integrated Audio Interface: The I2S peripheral simplifies connection to audio codecs for high-quality audio applications.

High-Speed Audio Processing

The 252MHz MIPS32 M-Class core with I2S and DMA enables real-time audio effects processing and multi-channel audio streaming in professional equipment.

Industrial HMI with Graphics

Its high speed and 2MB Flash allow for rich graphical user interfaces on TFT displays, with DMA offloading the CPU for smooth animations.

Embedded Vision Systems

The processing power and 512KB RAM support camera interfacing and basic image processing algorithms for inspection and surveillance.

IoT Gateways

With its high speed and memory, it can handle protocol stacks for Ethernet, Wi-Fi, and Bluetooth concurrently, acting as a central hub.

Motor Control with Advanced Algorithms

The 252MHz speed enables complex field-oriented control (FOC) algorithms for brushless DC motors, improving efficiency and torque.

Medical Ultrasound Devices

High-speed ADC and DMA capabilities allow for processing of ultrasound signals, making it suitable for portable diagnostic tools.

Q: What is the maximum clock speed of the PIC32MZ2048EFH100T-250I/GJX?
A: It operates at up to 252MHz, providing high computational throughput.
Q: How much RAM is available on this microcontroller?
A: It includes 512KB of RAM, suitable for complex data processing and buffering.
Q: What package is this device offered in?
A: It is available in a 100-pin TFBGA package.
Q: Does it support audio interfaces?
A: Yes, it features an I2S interface for audio applications, along with DMA and PWM.
Base Product Number : PIC32MZ2048EFH100
100-TFBGA 252MHz 2MB Flash 32-bit MCU 512KB RAM Audio DMA HMI I2S MIPS32 M-Class PIC32
