Microchip Technology PIC32MZ2048EFH144-I/PH

Skip to product information
1 of 1

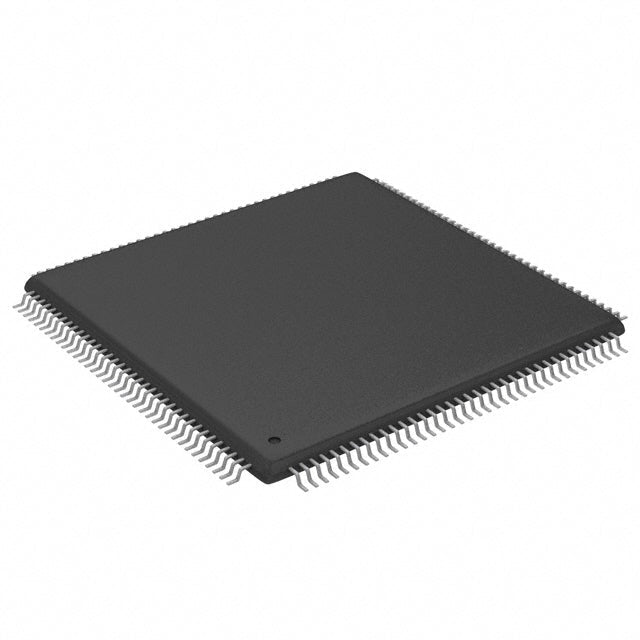

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $16.28
Regular price $17.14 Sale price $16.28
Sale Sold out
Quantity Unit Price Total Price
1 $16.28 $16.28
15+ $15.77 $236.55
25+ $15.43 $385.75
50+ $14.57 $728.50
100+ $12.86 $1,286.00
N+ $2.57 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Tray |
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 200MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 120
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 48x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Grade -
Qualification AEC -
Mounting Type Surface Mount
Supplier Device Package 144-TQFP (16x16)
Package / Case 144-TQFP
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The PIC32MZ2048EFH144-I/PH is a high-performance 32-bit microcontroller from Microchip, featuring a MIPS32 M-Class core at 200MHz. It provides 2MB flash and 512KB SRAM, with a supply voltage of 2.1V to 3.6V. The 144-TQFP package supports complex embedded applications.

  • Massive memory: 2MB flash and 512KB SRAM for complex applications.
  • High speed: 200MHz MIPS core for real-time processing.
  • Advanced peripherals: DMA, I2S, and PWM enhance system performance.
  • Reliable operation: -40°C to 85°C with BOD and WDT.

High-End Audio

200MHz MIPS core and I2S support high-fidelity audio processing and effects.

Industrial HMI

2MB flash and 512KB RAM enable rich graphical user interfaces on TFT displays.

Networking Equipment

Ethernet and DMA capabilities support routers and switches with advanced QoS.

Medical Imaging

High-speed processing handles ultrasound and imaging signal processing.

Robotics

Multiple PWM channels and fast interrupts enable complex motion planning.

Smart Grid

Robust peripherals and wide temperature range suit power monitoring systems.

Q: What is the core processor?
A: MIPS32 M-Class, running at 200MHz.
Q: How much flash memory?
A: 2MB, ideal for large application code.
Q: What is the RAM size?
A: 512KB SRAM for data-heavy processing.
Q: What is the supply voltage?
A: 2.1V to 3.6V, compatible with 3.3V systems.
Q: Does it have a DMA controller?
A: Yes, with multiple DMA channels for efficient peripherals.
Base Product Number : PIC32MZ2048EFH144
144-TQFP 200MHz 2MB flash 32-bit MCU 512KB SRAM audio DMA HMI I2S medical MIPS32 M-Class networking robotics
Q: What is the core processor?
A: MIPS32 M-Class, running at 200MHz.
Q: How much flash memory?
A: 2MB, ideal for large application code.
Q: What is the RAM size?
A: 512KB SRAM for data-heavy processing.
Q: What is the supply voltage?
A: 2.1V to 3.6V, compatible with 3.3V systems.
Q: Does it have a DMA controller?
A: Yes, with multiple DMA channels for efficient peripherals.
