Microchip Technology PIC32MZ2048EFH144-I/PL

Skip to product information
1 of 1

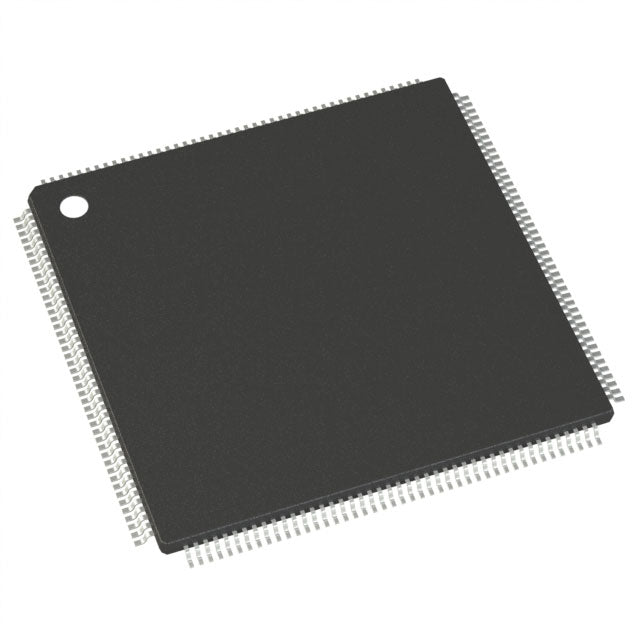

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $16.15
Regular price $17.00 Sale price $16.15
Sale Sold out
Quantity Unit Price Total Price
1 $16.15 $16.15
15+ $15.64 $234.60
25+ $15.30 $382.50
50+ $14.45 $722.50
100+ $12.75 $1,275.00
N+ $2.55 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Tray |
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 200MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 120
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 48x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Grade -
Qualification AEC -
Mounting Type Surface Mount
Supplier Device Package 144-LQFP (20x20)
Package / Case 144-LQFP
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The PIC32MZ2048EFH144-I/PL from Microchip Technology is a high-performance 32-bit MCU based on the MIPS32 M-Class core. Operating at 200 MHz, it provides 2 MB flash and 512 KB RAM for demanding embedded applications. With a 2.1V to 3.6V supply range and a 144-LQFP package, it integrates DMA, I2S, PWM, and watchdog features for industrial and connectivity solutions.

  • High throughput: 200 MHz MIPS32 core accelerates complex algorithms and real-time response.
  • Large memory: 2 MB flash and 512 KB RAM support extensive code and data buffering.
  • Rich peripherals: DMA, I2S, PWM, and WDT reduce external components and simplify design.
  • Reliable operation: Brown-out detection and POR ensure stable performance in variable power conditions.

Industrial Control

High-speed 200 MHz MIPS32 core with 2 MB flash enables complex real-time control loops and predictive maintenance algorithms.

IoT Gateways

DMA and I2S peripherals support efficient sensor data aggregation and audio streaming, while 512 KB RAM handles multiple protocol stacks.

Motor Control

PWM modules with dead-time control and fault inputs provide precise three-phase inverter control for BLDC and PMSM motors.

Medical Devices

Brown-out detection and watchdog timer ensure reliable operation in portable diagnostic equipment requiring long-term stability.

Audio Processing

I2S interface and 200 MHz throughput allow real-time DSP effects and multi-channel audio mixing for professional equipment.

Automotive Aftermarket

Wide voltage range and robust peripherals suit telematics units and body control modules in harsh environments.

Q: What is the maximum operating frequency?
A: 200 MHz.
Q: What is the program memory size?
A: 2 MB flash.
Q: What is the RAM size?
A: 512 KB.
Q: What is the supply voltage range?
A: 2.1V to 3.6V.
Q: What package is available?
A: 144-LQFP.
Base Product Number : PIC32MZ2048EFH144
144-LQFP 200MHz 2MB Flash 32-bit MCU 512KB RAM DMA I2S Industrial IoT MIPS32 M-Class Motor Control PWM
