Microchip Technology PIC32MZ2048EFH144T-E/JWX

Skip to product information
1 of 1

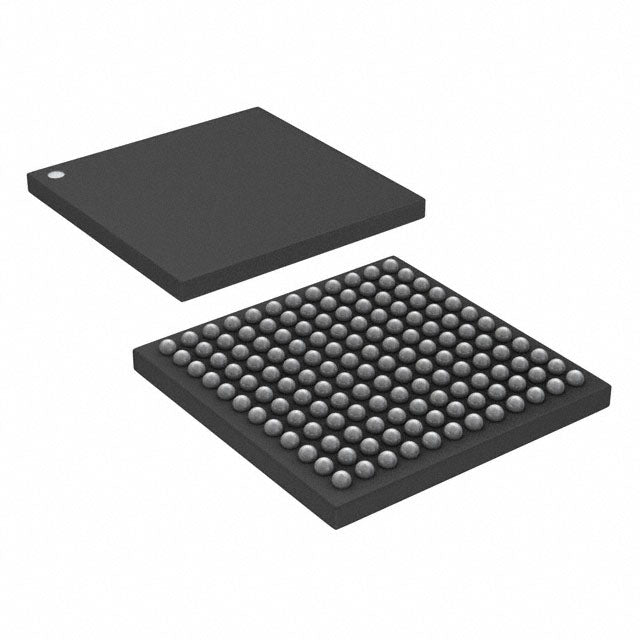

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $17.32
Regular price $18.23 Sale price $17.32
Sale Sold out
Quantity Unit Price Total Price
1 $17.32 $17.32
15+ $16.77 $251.55
25+ $16.41 $410.25
50+ $15.50 $775.00
100+ $13.67 $1,367.00
N+ $2.73 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series PIC® 32MZ
Packaging Cut Tape (CT) | NULL
Core Processor MIPS32® M-Class
Core Size 32-Bit Single-Core
Speed 180MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, PMP, SPI, SQI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 120
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 512K x 8
Voltage - Supply (Vcc/Vdd) 2.1V ~ 3.6V
Data Converters A/D 48x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C (TA)
Grade Automotive
Qualification AEC AEC-Q100
Mounting Type Surface Mount
Supplier Device Package 144-TFBGA (7x7)
Package / Case 144-TFBGA
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The Microchip PIC32MZ2048EFH144T-E/JWX is a high-performance 32-bit MCU built on the MIPS32 M-Class core, running at 180 MHz. It offers 2 MB of flash and 512 KB of RAM, enabling complex embedded applications. With a wide voltage range and industrial temperature rating, it is designed for reliable operation in demanding environments.

  • High Throughput: 180 MHz MIPS core delivers fast instruction execution for real-time control loops.
  • Large Memory: 2 MB flash and 512 KB RAM support complex firmware and data buffering.
  • Rich Peripherals: DMA, I2S, PWM, and WDT reduce external component count and simplify design.
  • Wide Temperature Range: -40°C to 125°C ensures operation in harsh industrial settings.

Industrial Motor Control

With a 180 MHz MIPS32 M-Class core, high-resolution PWM, and DMA, this MCU handles complex FOC algorithms for precise, low-latency motor control.

Embedded Audio Processing

The integrated I2S interface and 512 KB RAM enable multi-channel audio streaming and DSP effects without external codecs in many cases.

Automotive Gateway

Its 2 MB flash and robust CAN support (via external transceivers) make it suitable for protocol bridging and data logging in harsh thermal conditions.

High-Speed Data Acquisition

DMA controllers and a 180 MHz core allow simultaneous sampling from multiple ADCs, reducing CPU overhead for real-time monitoring systems.

IoT Edge Nodes

With low-power modes and a wide voltage range (2.1V-3.6V), it can serve as a powerful edge processor for pre-processing sensor data before cloud transmission.

Medical Device Control

The extended temperature range and WDT ensure reliable operation in portable diagnostic equipment requiring deterministic response.

Q: What is the maximum operating frequency of the PIC32MZ2048EFH144T-E/JWX?
A: The core runs at 180 MHz, providing high-performance processing for demanding applications.
Q: What is the program memory size?
A: It features 2 MB of flash program memory (2M x 8) for large application code.
Q: What is the operating temperature range?
A: It operates from -40°C to +125°C, suitable for industrial and automotive environments.
Q: What package is this MCU available in?
A: It comes in a 144-TFBGA package, ideal for compact PCB designs.
Base Product Number : PIC32MZ2048EFH144T-E/JWX
144-TFBGA 180MHz 2MB Flash 32-bit MCU 512KB RAM Automotive DMA I2S Industrial Microchip MIPS32 M-Class PWM
