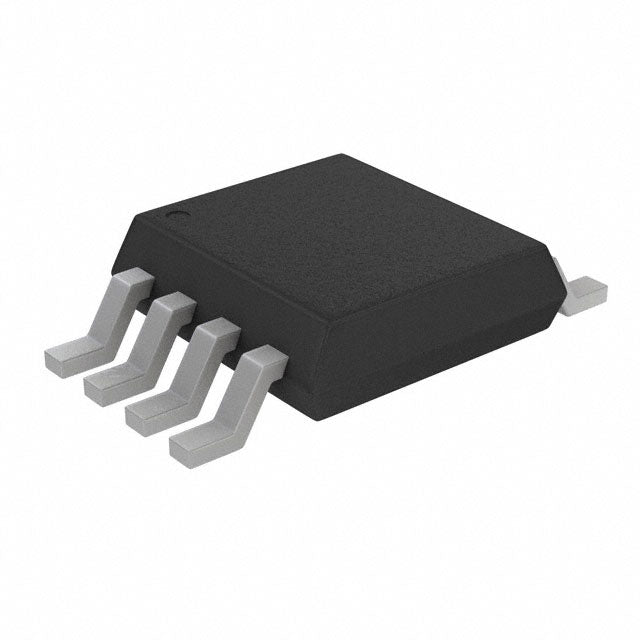

Microchip Technology PL611-01-N12MC-R

The PL611-01-N12MC-R from Microchip Technology is a versatile Frequency Synthesizer designed for multi-frequency clock generation. With a single circuit, it outputs 22.579MHz, 24MHz, and 24.576MHz, covering audio and USB applications. The PLL with bypass mode provides flexibility for direct or synthesized operation. Housed in an 8-TSSOP/MSOP package, it operates from 0°C to 70°C, making it ideal for consumer electronics and portable devices.

• Multi-Frequency Output: Generates 22.579MHz, 24MHz, and 24.576MHz, reducing crystal count in designs.
• PLL Bypass Mode: Offers direct or synthesized clocking for design flexibility.
• Compact Form Factor: 8-TSSOP/MSOP package saves space in portable devices.
• Low Jitter Performance: Ensures stable clocks for audio and USB applications.

Audio DAC Clock Generation

The PL611-01-N12MC-R generates precise 22.579MHz and 24.576MHz clocks for high-fidelity audio DACs, ensuring accurate sample rates for studio-grade sound.

USB Audio Interface Timing

For USB audio devices, this synthesizer provides the 24MHz clock required for USB controllers, enabling plug-and-play operation with minimal jitter.

Set-Top Box Video Processing

In set-top boxes, the device generates multiple video clocks, supporting various resolution standards without additional crystals.

Gaming Console Audio/Video Sync

Gaming consoles use this synthesizer to align audio and video clocks, reducing latency and improving user experience.

Portable Media Player Clocking

In portable players, the compact 8-MSOP package and low power consumption make it ideal for battery-powered audio playback.

Digital Signal Processing Systems

DSP systems benefit from the PLL bypass mode, allowing direct clocking or synthesized frequencies for flexible processing rates.

Q: What type of device is the PL611-01-N12MC-R?

A: It is a Frequency Synthesizer, generating multiple output frequencies from a single reference clock.

Q: Does it include a PLL?

A: Yes, it has a PLL with bypass capability, enabling direct or synthesized clock generation.

Q: What are the input and output types?

A: Both input and output are Clock signals, designed for standard clock distribution.

Q: How many circuits does it have?

A: It contains 1 circuit, providing a single synthesized output.

Q: What frequencies does it support?

A: It supports 22.579MHz, 24MHz, and 24.576MHz, covering audio and USB applications.

Q: What is the package and temperature range?

A: It comes in an 8-TSSOP/MSOP package and operates from 0°C to 70°C.
