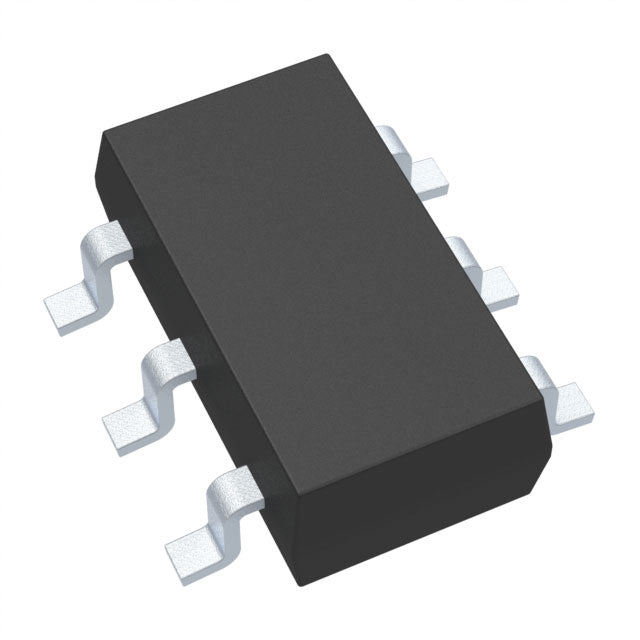

Microchip Technology PL902165USY-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | Jitter Blocker™ |
| Packaging | | |
| Type | - |
| PLL | No |
| Input | LVCMOS |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | No/No |
| Frequency - Max | 20MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 2.97V ~ 3.63V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
The Microchip Technology PL902165USY-TR is a single-circuit clock generator delivering a fixed 20MHz LVCMOS output from an LVCMOS input. Designed for reliable performance across -40°C to 85°C, this device provides a simple, low-cost timing solution for a variety of digital systems. Its compact SOT-23-6 package makes it ideal for space-constrained applications requiring a stable clock source without the complexity of PLL configuration.
- Compact SOT-23-6 Package: Saves board space in dense designs, ideal for portable and miniaturized electronics.
- Wide Temperature Range (-40°C to 85°C): Ensures reliable operation in industrial and automotive environments.
- Simple LVCMOS Interface: Easy to integrate with standard logic families, reducing design complexity and BOM cost.
- Low 20MHz Frequency: Ideal for low-power applications, helping to minimize overall system power consumption.
Low-Speed Microcontroller Clocking
The PL902165USY-TR, with its 20MHz LVCMOS output, is perfect for clocking 8-bit and 16-bit microcontrollers in embedded systems, providing a stable timebase for firmware execution.
Real-Time Clock (RTC) Backup
In systems requiring a backup clock, this device can provide a 20MHz reference for RTC circuits, ensuring accurate timekeeping in industrial controllers and smart meters.
Consumer Appliances
For washing machines, microwaves, and other home appliances, this clock generator offers a reliable, low-cost timing solution for control boards operating in household environments.
IoT Sensor Nodes
With its low frequency and compact package, it is ideal for IoT devices that require a simple clock for sensor data acquisition and wireless communication modules.
Battery-Powered Devices
The low-frequency operation helps minimize power consumption in portable devices, making it suitable for handheld instruments and remote monitoring equipment.
Legacy System Replacement
This clock generator can replace crystal oscillators in legacy designs, offering a more robust and temperature-stable timing solution in a smaller footprint.
