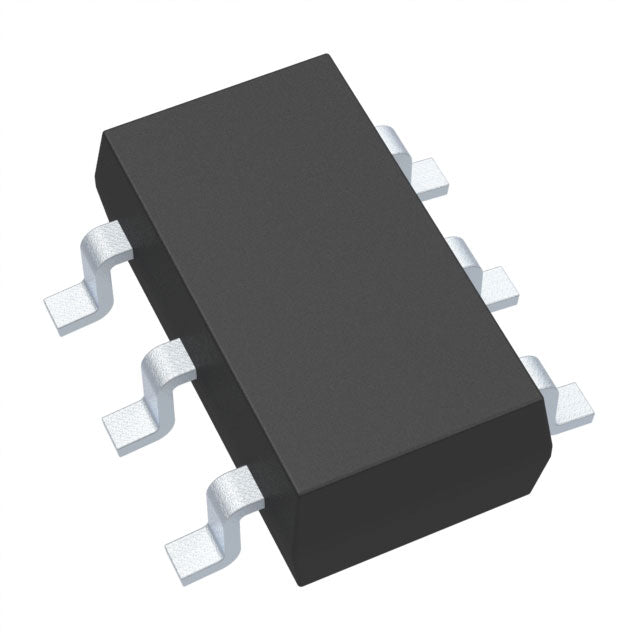

Microchip Technology PL902166USY-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | Jitter Blocker™ |
| Packaging | | |
| Type | - |
| PLL | No |
| Input | LVCMOS |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | No/No |
| Frequency - Max | 40MHz |
| Divider/Multiplier | No/No |
| Voltage - Supply | 2.97V ~ 3.63V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
The Microchip Technology PL902166USY-TR is a single-circuit clock generator delivering a fixed 40MHz LVCMOS output from an LVCMOS input. Designed for reliable performance across -40°C to 85°C, this device provides a simple, low-cost timing solution for a variety of digital systems. Its compact SOT-23-6 package makes it ideal for space-constrained applications requiring a stable clock source without the complexity of PLL configuration.
- Compact SOT-23-6 Package: Saves board space in dense designs, ideal for portable and miniaturized electronics.
- Wide Temperature Range (-40°C to 85°C): Ensures reliable operation in industrial and automotive environments.
- Simple LVCMOS Interface: Easy to integrate with standard logic families, reducing design complexity and BOM cost.
- 40MHz Output: Provides a versatile clock frequency suitable for a wide range of microcontrollers and communication interfaces.
Embedded System Clocking
The PL902166USY-TR, with its 40MHz LVCMOS output, is ideal for clocking ARM-based microcontrollers and DSPs in industrial and consumer embedded systems, providing a stable timebase for real-time processing.
USB and Peripheral Controllers
In USB hubs and peripheral controllers, this clock generator can provide the 40MHz reference needed for USB 2.0 PHY operation, ensuring reliable data transfer.
Automotive Body Electronics
With its wide temperature range, this device can clock CAN transceivers and body control modules in vehicles, supporting reliable communication in harsh conditions.
Networking Peripherals
For Ethernet PHYs and switches, the 40MHz output can serve as a reference clock for 10/100 Mbps operation, offering a cost-effective timing solution.
Medical Monitoring Devices
In portable patient monitors, this clock generator provides timing for signal processing ICs, ensuring accurate data acquisition and display in clinical environments.
Security and Surveillance
For IP cameras and DVRs, the 40MHz clock can drive video encoders and network processors, supporting smooth video streaming and recording.
