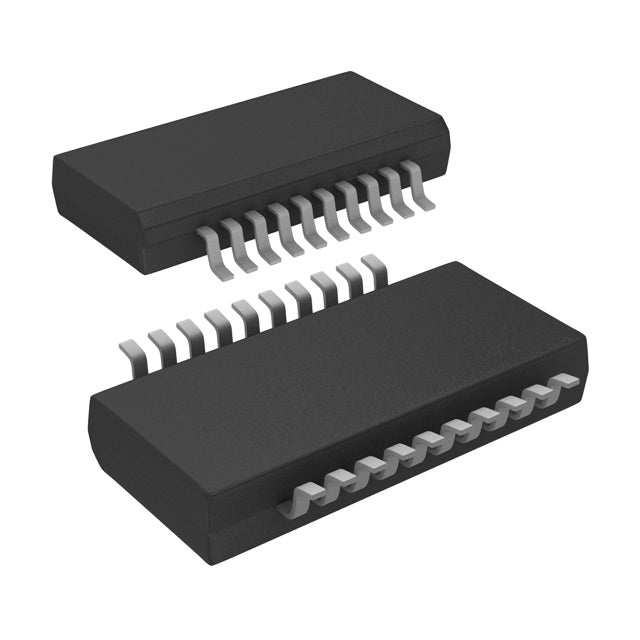

Texas Instruments PLL1705DBQ
Regular price
$4.58
Regular price
$4.82
Sale price
$4.58
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.58 | $4.58 |
| 15+ | $4.43 | $66.45 |
| 25+ | $4.34 | $108.50 |
| 50+ | $4.10 | $205.00 |
| 100+ | $3.62 | $362.00 |
| N+ | $0.72 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Type | PLL Multi-Clock Generator |
| PLL | Yes |
| Input | CMOS, Crystal |
| Output | CMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:6 |
| Differential - Input:Output | No/No |
| Frequency - Max | 36.87MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -25°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-SSOP |
| ROHS |  |
The PLL1705DBQ is a PLL multi-clock generator from Texas Instruments, providing a 36.87MHz CMOS output. It accepts CMOS or crystal inputs and is designed for audio/video synchronization. With 1 circuit and a temperature range of -25°C to 85°C, it is ideal for consumer and professional electronics.
- PLL-based synthesis: Provides accurate and stable clock generation.
- Multiple clock outputs: Supports various audio/video applications.
- Wide temperature range: Operates from -25°C to 85°C.
- Compact SSOP package: Suitable for space-constrained designs.
Audio/Video Synchronization
Generate multiple clocks for audio and video processing, ensuring synchronized playback.
Consumer Electronics
Use in DVD players and digital TVs to provide timing for audio codecs and video scalers.
Professional Audio Equipment
Provide a stable clock for mixing consoles and digital audio workstations.
Set-Top Boxes
Generate clocks for video decoding and audio output, improving user experience.
Industrial Timing
Serve as a clock source for industrial cameras and imaging systems.
- Q: What type of device is the PLL1705DBQ?
- A: It is a PLL Multi-Clock Generator from Texas Instruments.
- Q: Does the PLL1705DBQ include a PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL).
- Q: What are the input and output types?
- A: It accepts CMOS or Crystal inputs and provides CMOS outputs.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum output frequency?
- A: The output frequency is 36.87MHz.
- Q: What is the operating temperature range and package?
- A: It operates from -25°C to 85°C and comes in a 20-SSOP package.
Base Product Number ：
PLL1705
PLL1705DBQ.pdf
