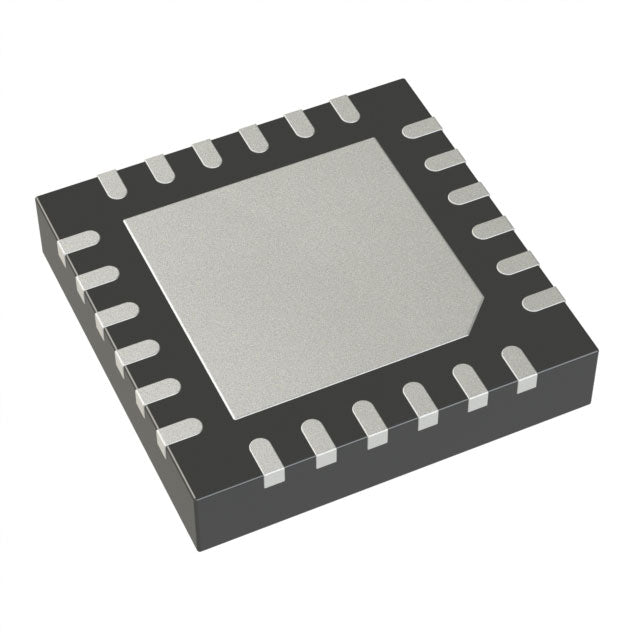

Renesas Electronics Corporation R5F1007EGNA#60
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.57 | $4.57 |
| 15+ | $1.05 | $15.75 |
| 25+ | $1.03 | $25.75 |
| 50+ | $0.97 | $48.50 |
| 100+ | $0.86 | $86.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RL78/G13 |
| Packaging | Tray | Tray |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I2C, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 15 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 6x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-HWQFN (4x4) |
| Package / Case | 24-WFQFN Exposed Pad |
| ROHS |  |
The Renesas R5F1007EGNA is a 16-bit RL78 microcontroller running at 32MHz with 64KB flash and 4KB RAM. Packaged in a 24-WFQFN, it operates from 2.4V to 5.5V and -40°C to 105°C. Integrated DMA, LVD, POR, PWM, and WDT provide a complete control solution for industrial and consumer applications. Its compact size and wide voltage range make it a versatile choice for space-limited designs.
- Compact 24-WFQFN package: Saves board space in miniaturized designs.
- 105°C operation: Handles elevated ambient temperatures in industrial cabinets.
- DMA integration: Reduces CPU overhead for peripheral data streaming.
- Wide voltage (2.4V-5.5V): Simplifies power supply design with single 3.3V or 5V rail.
Building Automation Controllers
With 32MHz and 64KB flash, it manages HVAC zone controllers; LVD and POR ensure stable operation during mains fluctuations.
White Goods (Washing Machines)
The 105°C rating handles motor driver heat; PWM controls triacs for water valves, while WDT monitors program execution.
E-Bike Display Units
2.4V minimum allows direct Li-ion battery monitoring; DMA transfers sensor data to the display without CPU intervention.
Industrial Timer Relays
24-WFQFN package saves PCB space; 4KB RAM stores multiple timing profiles, and WDT prevents lockups in noisy factories.
Smart Meters
RL78 core's low power extends battery life in gas meters; LVD triggers data save before battery depletion.
Automotive Aftermarket Sensors
105°C operation suits engine bay sensors; 5.5V tolerance handles unregulated vehicle power.
- Q: What is the supply voltage range?
- A: 2.4V to 5.5V, compatible with 3.3V and 5V systems.
- Q: What is the operating temperature?
- A: -40°C to 105°C, suitable for industrial environments.
- Q: How much flash memory is available?
- A: 64KB program flash with 4KB RAM.
- Q: Does it have DMA?
- A: Yes, DMA is included for efficient data transfer.
