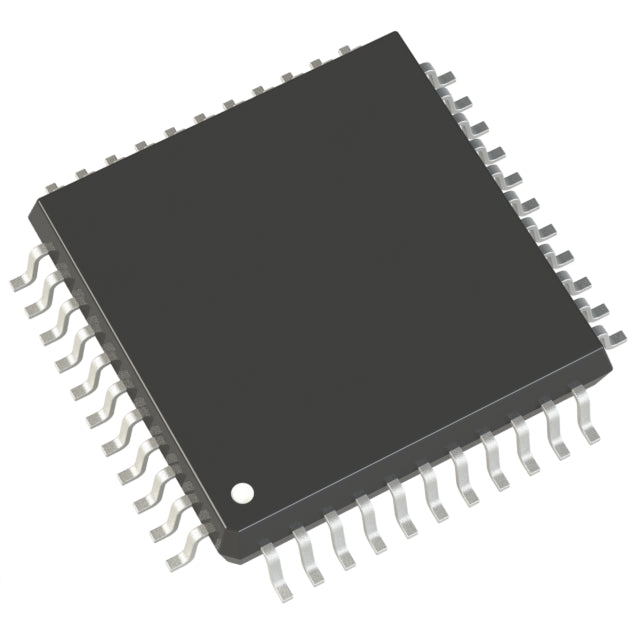

Renesas Electronics Corporation R5F100FFGFP#10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.97 | $5.97 |
| 15+ | $1.37 | $20.55 |
| 25+ | $1.34 | $33.50 |
| 50+ | $1.27 | $63.50 |
| 100+ | $1.12 | $112.00 |
| N+ | $0.22 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RL78/G13 |
| Packaging | Tray | Tray |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CSI, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 31 |
| Program Memory Size | 96KB (96K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 10x8/10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-LQFP (10x10) |
| Package / Case | 44-LQFP |
| ROHS |  |
The R5F100FFGFP#10 from Renesas is a 16-bit MCU based on the RL78 core, running at 32MHz. It offers 96KB flash and 8KB RAM, operating from 2.4V to 5.5V. The 44-LQFP package includes DMA, LVD, POR, PWM, and WDT, making it a robust choice for industrial and automotive applications requiring extended temperature tolerance.
- High-voltage operation (2.4V-5.5V): Direct interface with 5V sensors and actuators.
- Large 96KB flash: Supports complex firmware and data logging.
- RL78 core efficiency: Low power consumption with high code density.
- Extended temperature range (-40°C to 105°C): Suitable for harsh environments.
Industrial Automation
The RL78 core at 32MHz with 96KB flash handles complex control algorithms in factory automation equipment.
Home Appliances
With 5.5V support and PWM, it drives motors and displays in washing machines and refrigerators.
Automotive Body Control
Wide temperature range and LVD ensure reliable operation in car body electronics and lighting.
Smart Grid Devices
DMA and robust peripherals support metering and power monitoring applications.
Building Automation
HVAC controllers and access systems benefit from the MCU's deterministic timing and protection features.
Power Tools
High-voltage tolerance and WDT provide safe operation in battery-powered tools.
- Q: What is the operating voltage?
- A: It operates from 2.4V to 5.5V.
- Q: What core does it use?
- A: It uses the RL78 core at 32MHz.
- Q: What memory sizes are available?
- A: It has 96KB flash and 8KB RAM.
- Q: What package is this?
- A: It comes in a 44-LQFP package, rated for -40°C to 105°C.
R5F100FFGFP#10.pdf
- Q: What is the operating voltage?
- A: It operates from 2.4V to 5.5V.
- Q: What core does it use?
- A: It uses the RL78 core at 32MHz.
- Q: What memory sizes are available?
- A: It has 96KB flash and 8KB RAM.
- Q: What package is this?
- A: It comes in a 44-LQFP package, rated for -40°C to 105°C.
