R5F1096ACKSP#10

Renesas R5F1096ACKSP#10 - RL78/F12 Automotive Microcontroller

The R5F1096ACKSP#10 is a high-performance, automotive-grade 16-bit microcontroller from Renesas Electronics' RL78/F12 series, designed for demanding automotive and industrial applications requiring AEC-Q100 qualification and extended temperature operation.

Key Features & Benefits

• Automotive-Grade Reliability: AEC-Q100 qualified for automotive applications with extended temperature range (-40°C to 125°C)
• High Performance: 16-bit RL78 core running at 32MHz for efficient real-time processing
• Flexible Memory: 16KB Flash program memory, 4KB EEPROM for data retention, and 1KB RAM
• Wide Voltage Range: Operates from 2.7V to 5.5V, ideal for battery-powered and automotive systems
• Rich Connectivity: CSI, I²C, LINbus, and UART/USART interfaces for versatile communication
• Integrated Peripherals: DMA, Low Voltage Detect (LVD), Power-On Reset (POR), PWM, and Watchdog Timer (WDT)
• Analog Capabilities: 4-channel 8/10-bit SAR ADC for sensor interfacing

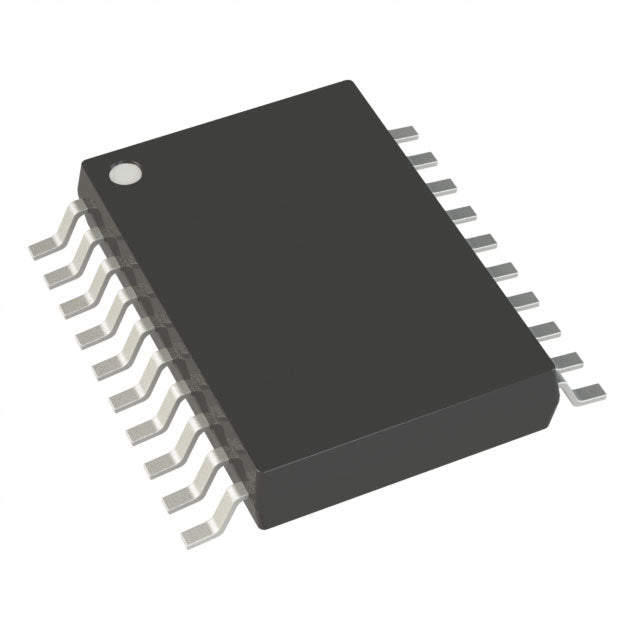

• Compact Package: 20-LSSOP surface mount package with 13 I/O pins

Typical Applications

• Automotive body control modules and dashboard systems
• Motor control and power management
• Industrial sensors and monitoring equipment
• Battery management systems
• HVAC control systems
• Smart metering and IoT edge devices

Why Choose HQICKEY?

At HQICKEY, we provide authentic Renesas microcontrollers with full traceability, competitive pricing, and expert technical support. All components are sourced from authorized channels and backed by our quality guarantee.
