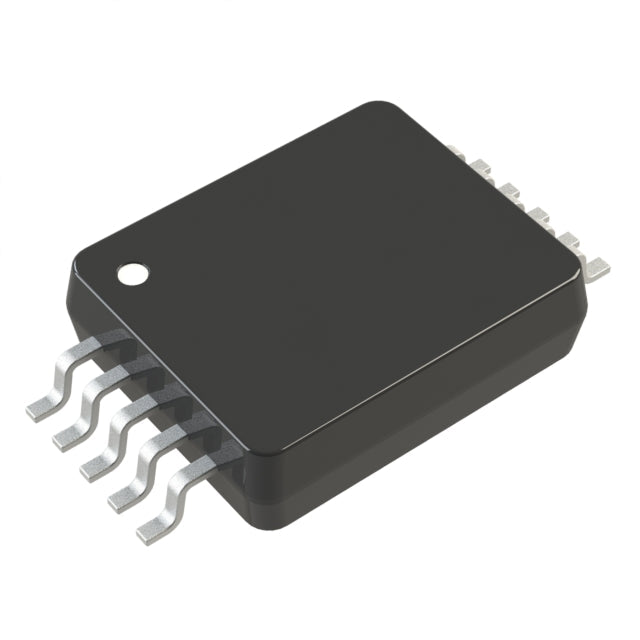

Renesas Electronics Corporation R5F12017ASP#10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.73 | $1.73 |
| 15+ | $0.40 | $6.00 |
| 25+ | $0.39 | $9.75 |
| 50+ | $0.37 | $18.50 |
| 100+ | $0.32 | $32.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | RL78/G15 |
| Packaging | Tray | Tray |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | CSI, I2C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 7 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 4x8/10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-LSSOP |
| Package / Case | 10-LSSOP (0.173", 4.40mm Width) |
| ROHS |  |
The R5F12017ASP#10 is a versatile RL78 MCU from Renesas, offering a balance of size and functionality. It features a 16MHz core, 4KB flash, and 1K x 8 RAM. The 10-LSSOP package provides additional I/O options, and the wide voltage range supports various applications.
- More I/O Options: The 10-pin LSSOP package provides additional GPIO for interface flexibility.
- Wide Operating Voltage: 2.4V to 5.5V range supports both 3.3V and 5V logic systems.
- Reliable Operation: Integrated POR and WDT enhance system stability.
- Cost-Effective: Ideal for high-volume consumer and industrial applications.
Industrial Sensors
The 10-LSSOP package offers more I/O pins than smaller packages, allowing for multiple sensor inputs and status outputs.
Building Automation
With 5V operation, it can interface directly with legacy HVAC control systems, providing simple on/off or PWM control.
Consumer Electronics
Ideal for remote controls or small handheld devices, where the 16MHz speed is sufficient for UI handling.
Power Tools
The WDT and POR ensure reliable operation in high-vibration environments, while the PWM controls motor speed.
Automotive Aftermarket
For LED lighting controllers or small actuators, this MCU provides a robust and cost-effective solution.
Medical Monitoring
Its low power and small size make it suitable for wearable health monitors that require long battery life.
- Q: What is the maximum speed of the R5F12017ASP#10?
- A: It operates at up to 16MHz.
- Q: What is the package type?
- A: It comes in a 10-LSSOP package with a 4.40mm width.
- Q: What is the supply voltage range?
- A: It supports 2.4V to 5.5V, allowing for flexible power designs.
- Q: How much flash memory is included?
- A: It has 4KB (4K x 8) of flash memory.
