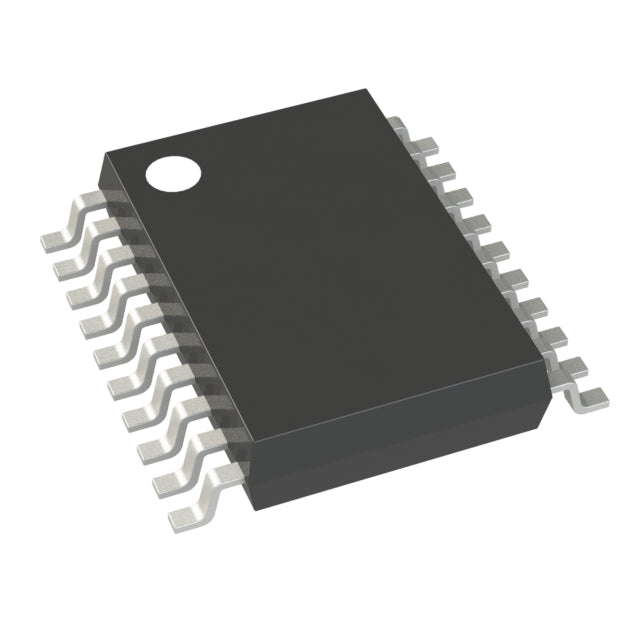

Renesas Electronics Corporation R5F21294JSP#W4
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | R8C/2x/29 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | LED, POR, Voltage Detect, WDT |
| Number of I/O | 13 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-LSSOP |
| Package / Case | 20-LSSOP (0.173", 4.40mm Width) |
| ROHS |  |
Product Overview
The R5F21294JSP#W4 from Renesas Electronics is a high-performance 16-bit microcontroller from the R8C/2x/29 series, engineered for embedded and industrial electronics applications. Featuring a robust R8C core processor running at 20MHz, this MCU delivers reliable performance across a wide operating temperature range of -40°C to 85°C, making it ideal for harsh industrial environments and automotive applications.
Key Features & Specifications
- 16-bit R8C Core Architecture: Efficient processing power with optimized instruction set for demanding embedded applications, delivering superior performance-per-watt ratio
- Comprehensive Memory Configuration: 16KB Flash program memory for application code, 2KB EEPROM for non-volatile data storage, and 1KB RAM for runtime operations
- Rich Connectivity Options: Multiple communication interfaces including I2C, LINbus, SIO, SSU, and UART/USART for seamless integration with sensors, displays, and other peripherals
- Integrated Peripherals: Built-in LED driver, Power-On Reset (POR), voltage detection circuitry, and watchdog timer (WDT) for enhanced system reliability
- Precision Analog Capabilities: 4-channel 10-bit A/D converter for accurate analog signal measurements and sensor interfacing
- Flexible Power Supply Range: Wide voltage range from 2.7V to 5.5V enables battery-powered and industrial power supply compatibility
- Compact Surface Mount Package: 20-LSSOP package (4.40mm width) optimized for space-constrained PCB designs
- 13 Configurable I/O Pins: Versatile GPIO configuration with multiple function options for diverse application requirements
- Internal Oscillator: Reduces external component count and simplifies board design while maintaining timing accuracy
Technical Advantages
The R5F21294JSP#W4 combines low power consumption with high processing efficiency, making it perfect for battery-operated devices and energy-conscious designs. The internal oscillator eliminates the need for external crystal components, reducing BOM costs and board space. With its industrial-grade temperature range and robust peripheral set, this microcontroller excels in automotive control modules, industrial sensors, motor control systems, and smart metering applications.
Application Areas
This microcontroller is extensively used in:
- Industrial Control Systems: PLCs, process controllers, and automation equipment
- Automotive Electronics: Body control modules, dashboard controllers, and sensor interfaces
- Motor Control: Brushless DC motor control, stepper motor drivers, and servo systems
- Smart Sensors: Temperature, pressure, and environmental monitoring systems
- Consumer Electronics: Home appliances, HVAC controls, and smart home devices
- Medical Devices: Portable diagnostic equipment and patient monitoring systems
Development & Support
Renesas provides comprehensive development tools, including integrated development environments (IDEs), debuggers, and evaluation boards specifically designed for the R8C/2x series. Extensive documentation, application notes, and reference designs accelerate your time-to-market and ensure successful implementation.
Quality & Compliance
Manufactured by Renesas Electronics Corporation, a global leader in semiconductor solutions with decades of microcontroller expertise. This device is RoHS compliant, meeting international environmental standards. Available in tape and reel packaging for automated pick-and-place assembly processes, ensuring high-volume manufacturing efficiency.
Why Choose HQICKEY?
At HQICKEY, we guarantee 100% authentic components sourced directly from authorized distributors. Every R5F21294JSP#W4 microcontroller comes with full traceability documentation and is backed by our quality assurance program. Our technical support team provides expert guidance for component selection, design-in support, and lifecycle management to ensure your project success.
Ordering Information
Part Number: R5F21294JSP#W4
Package: 20-LSSOP (Tape & Reel)
Minimum Order Quantity: Contact us for volume pricing
Lead Time: In stock for immediate shipment
