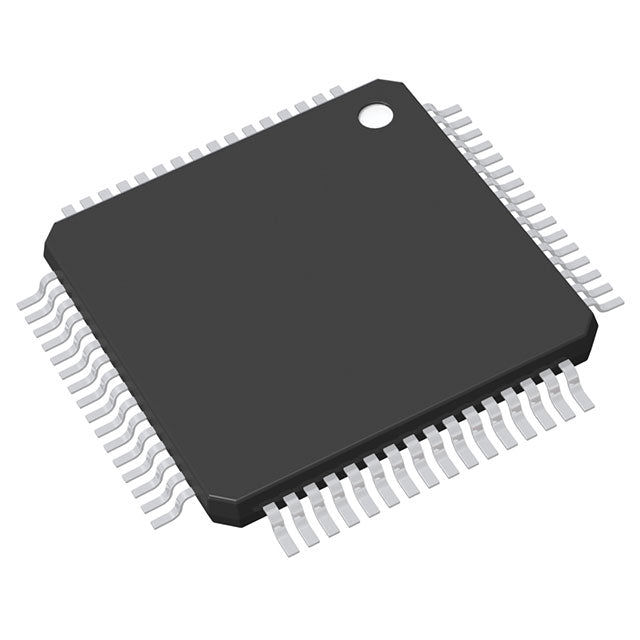

Renesas Electronics Corporation R5F2136CCNFP#50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | R8C/3x/36C |
| Packaging | | Tape & Reel (TR) |
| Core Processor | R8C |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | I2C, LINbus, SIO, SSU, UART/USART |
| Peripherals | POR, PWM, Voltage Detect, WDT |
| Number of I/O | 59 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 12x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LFQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The Renesas R5F2136CCNFP#50 is a high-memory variant of the R8C family, offering 128KB of flash and 10KB of RAM. Running at 20MHz, this 16-bit MCU provides ample resources for data-intensive applications. Its 1.8V-5.5V supply range and integrated POR, PWM, voltage detect, and WDT make it a versatile choice for industrial and consumer control systems in a 64-LQFP package.
- Large Memory Footprint: 128KB flash and 10KB RAM support complex firmware and data buffering without external memory.
- Robust Peripheral Set: Integrated PWM, POR, and voltage detection reduce system cost and improve reliability.
- Wide Voltage Operation: 1.8V to 5.5V range accommodates various power sources, from batteries to regulated rails.
- Scalable Performance: The 20MHz R8C core delivers deterministic real-time response for control loops.
Advanced Motor Drives
The 128KB flash allows complex FOC algorithms, while PWM channels drive IGBTs in 3-phase inverters.
Industrial Automation Controllers
With 10KB RAM and 20MHz throughput, it can handle multiple sensor inputs and control loops in PLCs.
Medical Monitoring Devices
Wide voltage range and WDT ensure safe operation in portable patient monitors and diagnostic tools.
Smart Grid Meters
Voltage detection and low-power modes make it suitable for energy metering with long battery backup.
Robotics Control Boards
Ample memory supports kinematics calculations and servo control in educational and light industrial robots.
Automotive Aftermarket ECUs
The -20°C to 85°C range and robust peripherals fit retrofit engine control or telematics units.
- Q: What is the maximum operating frequency of this MCU?
- A: The R5F2136CCNFP#50 runs at up to 20MHz using the R8C core.
- Q: How much flash memory does it have?
- A: It provides 128KB of program flash memory.
- Q: What is the RAM size?
- A: It includes 10KB of SRAM.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V.
- Q: What package is available?
- A: It is housed in a 64-pin LQFP package.
