Analog Devices Inc. RDC1742414
Regular price
Dhs. 1,181.94
Regular price
Dhs. 1,244.13
Sale price
Dhs. 1,181.94
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1,181.94 | Dhs. 1,181.94 |
| 15+ | Dhs. 1,144.60 | Dhs. 17,169.00 |
| 25+ | Dhs. 1,119.72 | Dhs. 27,993.00 |
| 50+ | Dhs. 1,057.51 | Dhs. 52,875.50 |
| 100+ | Dhs. 933.10 | Dhs. 93,310.00 |
| N+ | Dhs. 186.62 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

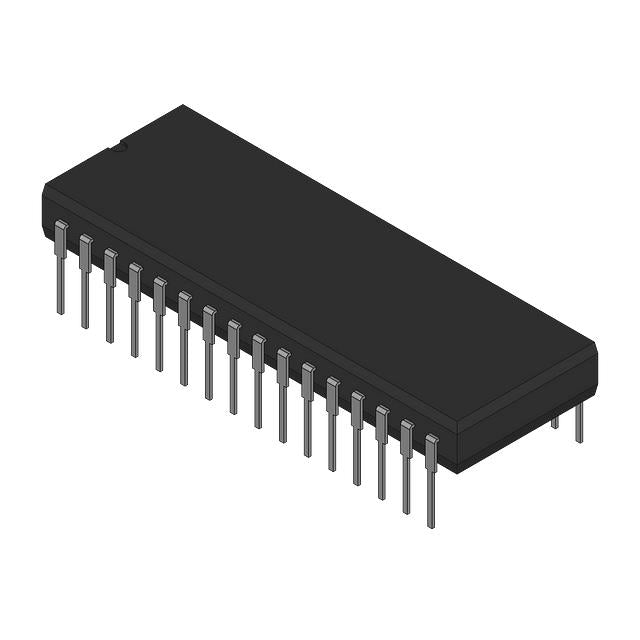

RDC1742414 Resolver-to-Digital Converter
The RDC1742414 from Analog Devices Inc. is a high-precision 4-channel resolver-to-digital (R/D) converter designed for demanding aerospace, automotive, industrial, and military applications requiring accurate angular position sensing and motion control.
Key Features
- 4-Channel Design: Simultaneous conversion of multiple resolver inputs for multi-axis motion control systems
- 12-Bit Resolution: Delivers precise angular position data with excellent accuracy
- Parallel Data Interface: Fast, straightforward integration with microcontrollers and digital systems
- Extended Temperature Range: Military-grade operation from -55°C to 125°C ensures reliability in harsh environments
- Dual ±15V Supply: Standard industrial power supply compatibility
- Through-Hole Mounting: Robust 32-DIP package ideal for high-reliability applications
Applications
Ideal for precision motion control in robotics, CNC machinery, servo systems, aerospace actuators, automotive steering systems, and industrial automation where accurate angular position feedback is critical.
Quality & Traceability
All components are sourced from authorized distributors with full traceability documentation. Long lifecycle support ensures availability for critical applications. RoHS and REACH compliant for global regulatory requirements.
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Bulk | |
| Type | R/D Converter |
| Number of Channels | 4 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | - |
| Data Interface | Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | 15V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 32-DIP (0.900", 22.90mm) |
| Supplier Device Package | 32-DIP |
RDC1742414.pdf
×
