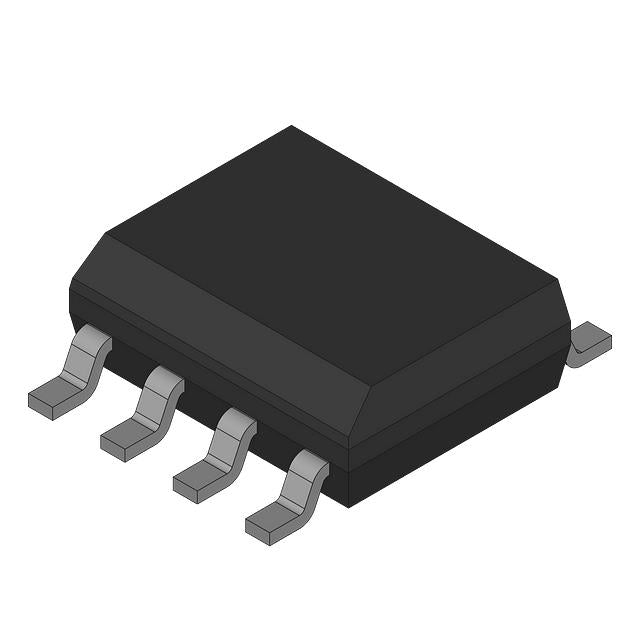

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Analog Devices Inc./Maxim Integrated
REF02DSA
Integrated Circuits & Chips
Analog Devices Inc./Maxim Integrated
IC VR 5V VOLTAGE REFERENCE
REF02DSA
Regular price
$2.06
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
(Volume discounts available! Contact our customer support for customized pricing on bulk orders.Pro Tip: 🇺🇸 Switch your region to United States for localized offers.)
Regular price
$2.17
Sale price
Unit price
per
| quantity | unit price | total price |
| 1 | $2.06 | $2.06 |
| 15+ | $2.00 USD | $29.95 USD |
| 25+ | $1.95 USD | $48.83 USD |
| 50+ | $1.84 USD | $92.23 USD |
| 100+ | $1.63 USD | $162.75 USD |
| N+ | $1.09 USD | Price Inquiry |
Shipping calculated at checkout.
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | REF02 |
| Packaging | Bulk | |
| Reference Type | Series |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 21 mA |
| Tolerance | ±2% |
| Temperature Coefficient | 250ppm/°C |
| Noise - 0.1Hz to 10Hz | 12µVp-p |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | 8V ~ 30V |
| Current - Supply | 2mA |
| Current - Cathode | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Datasheets:
REF02DSA
.pdf
×
