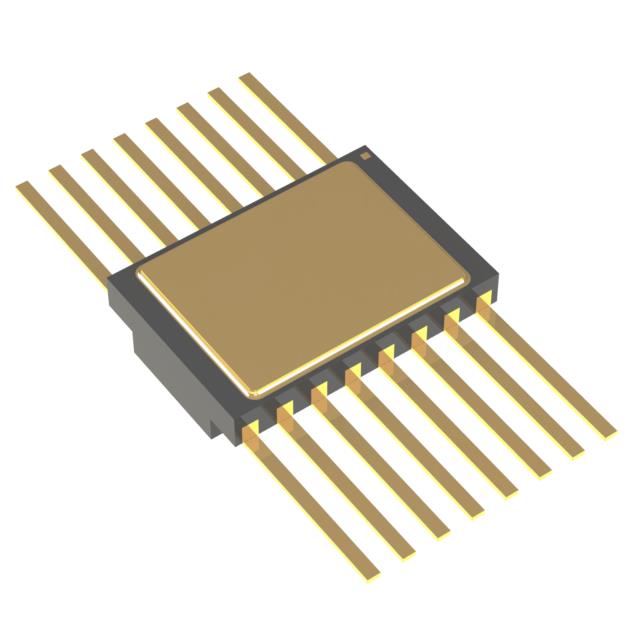

STMicroelectronics RH-AD128K1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.40 | $1.40 |
| 15+ | $1,761.48 | $26,422.20 |
| 25+ | $1,723.19 | $43,079.75 |
| 50+ | $1,627.45 | $81,372.50 |
| 100+ | $1,435.99 | $143,599.00 |
| N+ | $287.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Strip | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | Serial, SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | - |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 16-CFlatPack |
| Supplier Device Package | 16-CFlatPack |
| ROHS |  |
The RH-AD128K1 from STMicroelectronics is a high-speed 12-bit analog-to-digital converter designed for demanding applications. It features a multiplexed input supporting 4 or 8 channels and a built-in sample-and-hold circuit. With a maximum sampling rate of 1M SPS, it excels in high-frequency signal acquisition. The device offers both serial and SPI interfaces for flexible connectivity. Housed in a compact 16-pin CFlatPack, it operates over the military temperature range of -55°C to 125°C, making it suitable for aerospace and industrial applications.
- High-Speed Sampling: 1M SPS enables capture of fast transient signals.
- Flexible Channel Configuration: Supports 4 or 8 input channels for versatile system design.
- Dual Interface Options: Serial and SPI interfaces provide compatibility with various microcontrollers.
- Wide Temperature Range: -55°C to 125°C ensures reliable operation in harsh environments.
- Compact Package: 16-pin CFlatPack saves board space in space-constrained designs.
High-Speed Data Acquisition
The 1M SPS sampling rate of the RH-AD128K1 makes it ideal for high-speed data acquisition systems, such as transient recorders and high-frequency signal analysis.
Radiation-Hardened Space Systems
Designed for extreme environments, this ADC is suitable for satellite telemetry and space instrumentation where radiation tolerance is critical.
Multi-Sensor Monitoring
With 4 or 8 input channels, the RH-AD128K1 can monitor multiple sensors simultaneously, making it perfect for environmental monitoring systems.
Automotive Engine Control
The high sampling rate and multiple channels enable real-time monitoring of engine parameters, improving fuel efficiency and performance in automotive ECUs.
Industrial Automation
In factory automation, the RH-AD128K1 can digitize multiple process variables at high speed, enabling precise control of robotic systems and production lines.
- Q: What is the RH-AD128K1?
- A: The RH-AD128K1 is a 12-bit analog-to-digital converter from STMicroelectronics, featuring a MUX-S/H-ADC architecture.
- Q: What is the resolution of the RH-AD128K1?
- A: It offers 12-bit resolution, providing 4096 discrete levels for accurate signal digitization.
- Q: What is the maximum sampling rate?
- A: The RH-AD128K1 supports a high sampling rate of 1M SPS (1 MSPS), suitable for high-speed applications.
- Q: How many input channels does it have?
- A: It has configurable input channels: 4 or 8, depending on the configuration, offering flexibility in system design.
- Q: What digital interface does it use?
- A: It supports both Serial and SPI interfaces, allowing for versatile connection to various microcontrollers.
- Q: What is the package type?
- A: The RH-AD128K1 is available in a 16-pin CFlatPack, a space-saving surface-mount package suitable for compact designs.
