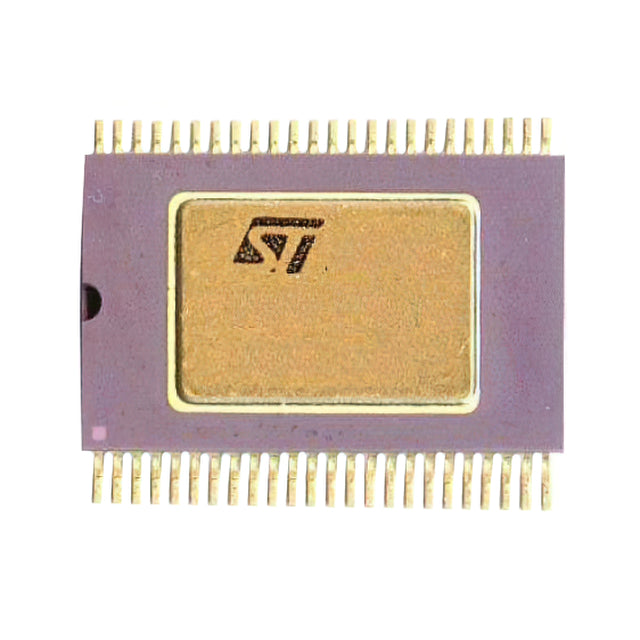

STMicroelectronics RHF1201KSO1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.80 | $2.80 |
| 15+ | $2,191.07 | $32,866.05 |
| 25+ | $2,143.44 | $53,586.00 |
| 50+ | $2,024.36 | $101,218.00 |
| 100+ | $1,786.20 | $178,620.00 |
| N+ | $357.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | |
| Packaging | Strip | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 50M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Serial |
| Configuration | ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.3V ~ 2.7V |
| Voltage - Supply, Digital | 2.3V ~ 2.7V |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 48-BCSOP (0.488", 12.40mm Width) |
| Supplier Device Package | 48-SO |
| ROHS |  |
The RHF1201KSO1 is a high-speed, 12-bit analog-to-digital converter from STMicroelectronics, engineered for demanding applications. It offers a sampling rate of 50M SPS and a serial interface, ensuring efficient data transfer. With a single input channel and support for external or internal references, it provides design flexibility. Its wide operating temperature range makes it suitable for harsh environments.
- High-Speed Performance: 50M SPS sampling rate enables digitization of fast signals for high-bandwidth applications.
- Wide Temperature Range: Operates from -55°C to 125°C, suitable for extreme environments.
- Flexible Reference: Supports both external and internal references for design versatility.
- Compact Package: 48-BCSOP package saves board space in dense designs.
High-Speed Data Acquisition
The 50M SPS sampling rate and 12-bit resolution make it ideal for high-speed data acquisition systems in test and measurement equipment, ensuring accurate capture of fast transient signals.
Radiation-Tolerant Space Systems
With its wide temperature range and robust design, this ADC is suitable for satellite telemetry and space instrumentation where extreme conditions are a factor.
Defense and Avionics
The high-speed serial interface and wide temperature range support radar signal processing and avionics control systems that require reliable performance in harsh environments.
Industrial Process Control
Its fast conversion rate enables real-time monitoring and control in industrial automation, improving response times in closed-loop systems.
Medical Imaging Equipment
The high sampling rate is beneficial for medical imaging modalities like ultrasound, where rapid digitization of analog signals is critical for image quality.
- Q: What is the resolution of the RHF1201KSO1 ADC?
- A: The RHF1201KSO1 is a 12-bit analog-to-digital converter.
- Q: What is the maximum sampling rate?
- A: It supports a high-speed sampling rate of 50M SPS.
- Q: How many input channels does it have?
- A: This ADC features a single (1) input channel.
- Q: What interface does it use?
- A: It utilizes a Serial interface for data output.
- Q: What is the operating temperature range?
- A: It operates over a wide temperature range of -55°C to 125°C.
- Q: What package is available?
- A: It comes in a 48-BCSOP package.
