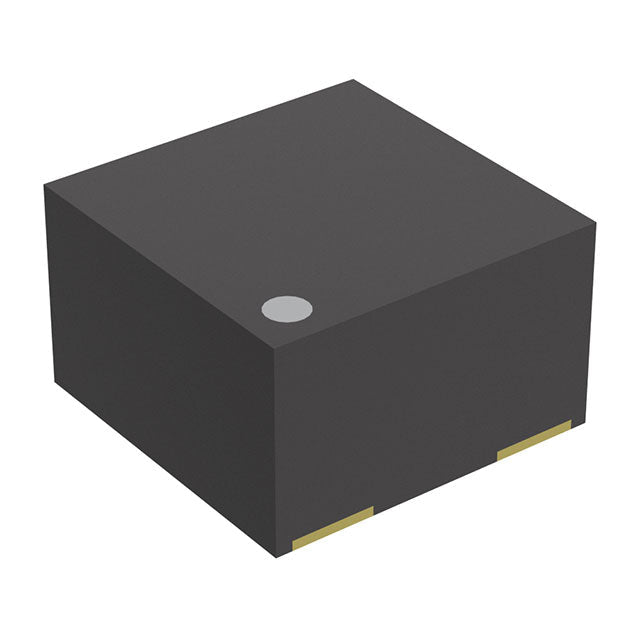

Nisshinbo Micro Devices Inc. RP114K101D5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.57 | $1.57 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Product Series | RP114x |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 1.05V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.59V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 75 μA |
| Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | DFN(PL)1010-4 |
| ROHS |  |
The RP114K101D5-TR from Nisshinbo is a fixed-output LDO regulator delivering a precise 1.05V supply. It supports up to 300mA of load current with a dropout voltage of 0.59V. Featuring a quiescent current of 75 μA and excellent PSRR of 75dB at 1kHz, it is well-suited for noise-sensitive, low-voltage digital applications.
- High PSRR: 75dB at 1kHz ensures stable, noise-free power for sensitive digital ICs.
- Ultra-Small DFN Package: The DFN(PL)1010-4 package is one of the smallest available, ideal for miniaturized designs.
- Low Dropout: 0.59V dropout at 300mA maximizes efficiency in low-voltage systems.
- Precise 1.05V Output: Meets the tight voltage tolerances required by modern processors.
FPGA and DSP Core Supplies
The 1.05V output is ideal for powering the core voltage of modern FPGAs and DSPs that require precise low-voltage rails.
High-Speed Digital Logic
With 75dB PSRR at 1kHz, it provides clean power for high-speed digital circuits, reducing jitter and errors.
Portable Test Equipment
Its compact DFN package and 300mA capability make it suitable for handheld multimeters and oscilloscopes.
Optical Transceivers
The low dropout and stable output support laser driver circuits in SFP modules, ensuring consistent performance.
Battery-Powered Cameras
It efficiently powers image sensors and processors in compact digital cameras, maximizing battery life.
- Q: What is the output voltage of the RP114K101D5-TR?
- A: The fixed output voltage is 1.05V.
- Q: What is the maximum output current?
- A: It can provide up to 300mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.59V at 300mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 75 μA.
- Q: What package is available?
- A: It is available in the DFN(PL)1010-4 package.
