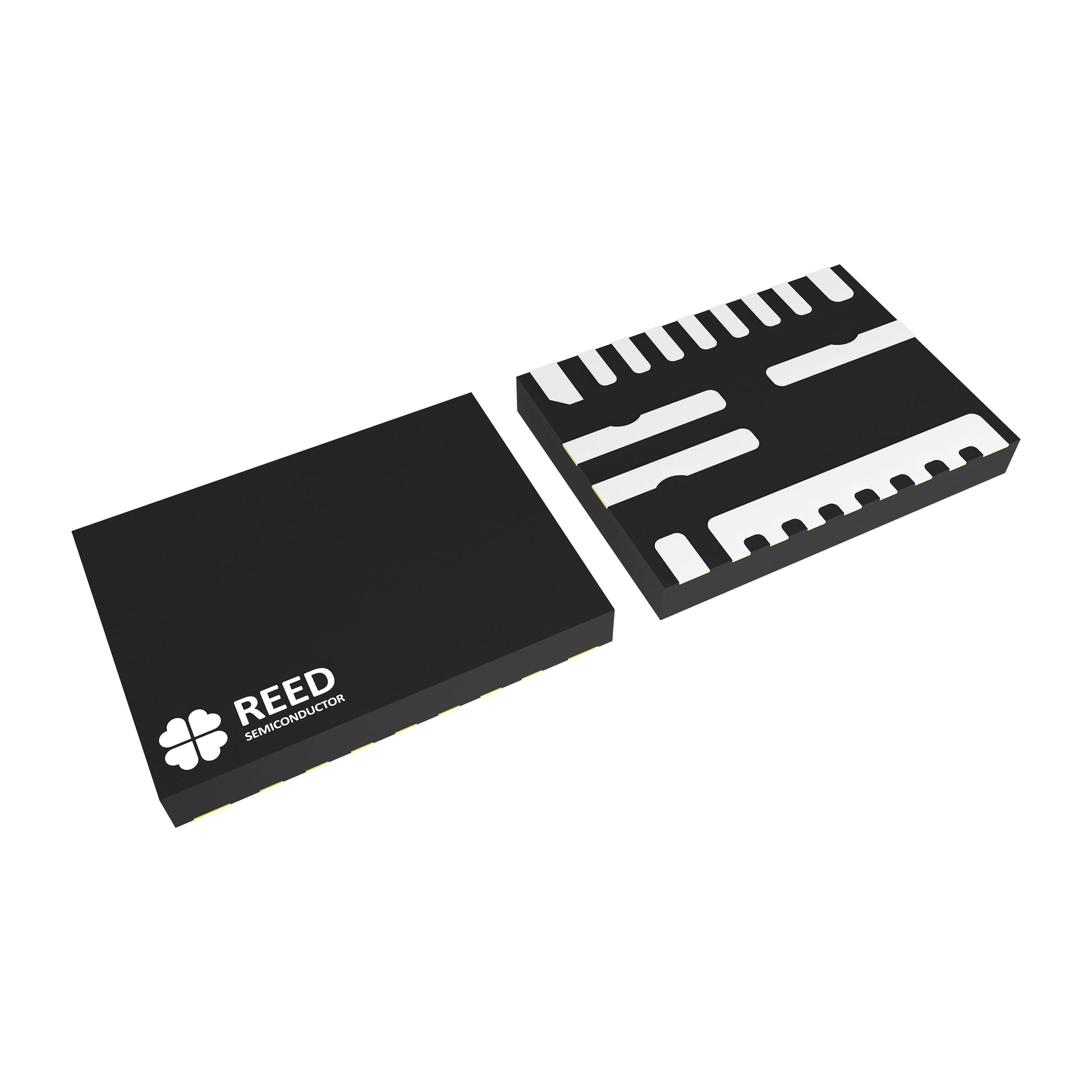

Reed Semiconductor Corp. RS53328LR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.75 | $6.75 |
| 15+ | $6.54 | $98.10 |
| 25+ | $6.40 | $160.00 |
| 50+ | $6.04 | $302.00 |
| 100+ | $5.33 | $533.00 |
| N+ | $1.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Reed Semiconductor Corp. |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.85V |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 12A |
| Frequency - Switching | 600kHz, 800kHz, 1MHz ~ 2.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 21-QFN |
| Supplier Device Package | 21-QFN (3x4) |
| ROHS |  |
The RS53328LR from Reed Semiconductor is a high-performance synchronous buck converter designed for demanding applications requiring up to 12A of output current. With an input voltage range of 2.85V to 16V, it efficiently steps down to outputs as low as 0.6V, ideal for powering modern digital cores. The switching frequency is selectable between 600kHz and 800kHz, or can be programmed from 1MHz to 2.2MHz, allowing designers to balance efficiency and component size. Housed in a compact 21-QFN package, this converter is a powerful solution for servers, FPGAs, and telecom equipment.
- High 12A Output Current: Meets the power demands of high-performance FPGAs, ASICs, and processors.
- Wide Input Range (2.85V-16V): Flexible for various system rails from 3.3V to 12V.
- Selectable/Programmable Frequency: Optimize for efficiency or small footprint with 600kHz, 800kHz, or up to 2.2MHz.
- Low Output Voltage (0.6V): Supports the latest low-voltage digital cores for reduced power consumption.
High-Current Point-of-Load (POL) for FPGAs
Modern FPGAs require core voltages around 0.8V-1.0V with currents exceeding 10A. The RS53328LR's 12A capability and 0.6V reference make it ideal for powering these high-performance logic devices.
Server and Data Center Power
In server motherboards, this converter efficiently steps down 12V rails to lower voltages for memory, chipset, and I/O, meeting the high-efficiency demands of modern data centers.
Telecom and Networking Equipment
For base stations and routers, the RS53328LR provides a compact, high-efficiency solution to generate multiple low-voltage rails from a 12V or 5V intermediate bus.
Graphics Cards and Gaming Hardware
High-end GPUs need precise, high-current power delivery. The RS53328LR's fast transient response and high current capability ensure stable operation during intense gaming workloads.
Storage Systems (SSD/HDD Arrays)
In enterprise storage, this converter powers controllers and memory, offering high efficiency to reduce thermal load in dense enclosures.
Industrial Computing
For rugged industrial PCs, the wide 2.85V-16V input range allows operation from various supply rails, providing a regulated output for processors and peripherals.
- Q: What type of converter is the RS53328LR?
- A: It is a synchronous step-down (Buck) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.85V to 16V.
- Q: What is the maximum output current?
- A: It can deliver up to 12A of continuous output current.
- Q: What is the switching frequency?
- A: The frequency is selectable at 600kHz, 800kHz, or programmable from 1MHz to 2.2MHz.
- Q: What package is available?
- A: It is offered in a compact 21-pin QFN package.
- Q: What is the output voltage range?
- A: The output voltage is adjustable from 0.6V to 5.5V.
