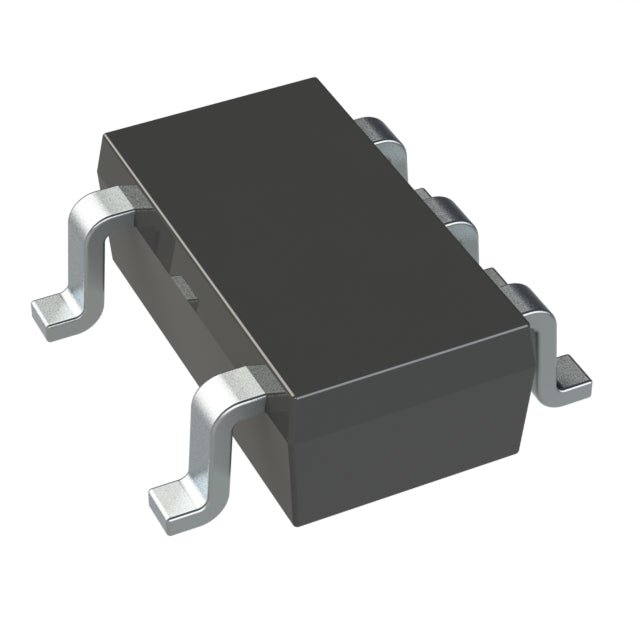

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Runic Technology
RS8801HXF5
RS8801HXF5
Regular price
Dhs. 2.92
Regular price
Dhs. 3.07
Sale price
Dhs. 2.92
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.92 AED | Dhs. 2.92 AED |
| 15+ | Dhs. 2.82 AED | Dhs. 42.30 AED |
| 25+ | Dhs. 2.76 AED | Dhs. 69.00 AED |
| 50+ | Dhs. 2.61 AED | Dhs. 130.50 AED |
| 100+ | Dhs. 2.30 AED | Dhs. 230.00 AED |
| N+ | Dhs. 0.46 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Runic Technology |
| Product Series | RS8801 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel, P-Channel) |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 8.5ns, 7ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
Datasheets:
RS8801HXF5
.pdf
×
