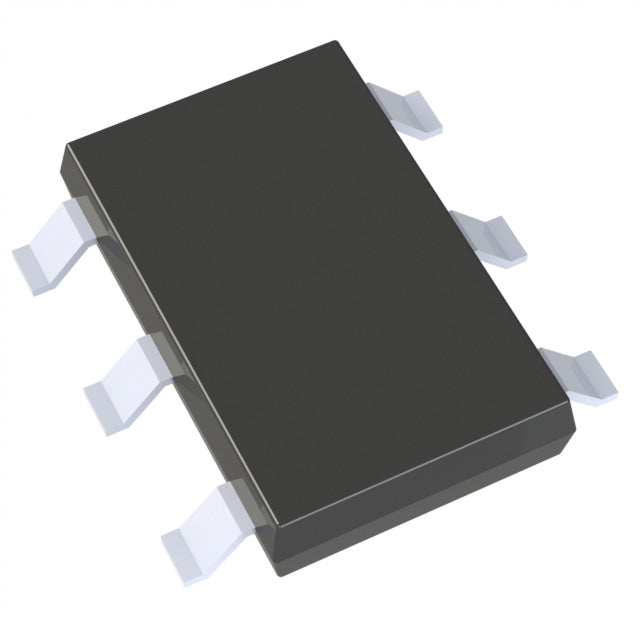

RT7736BGE - SmartJitter™ Flyback PWM Controller IC
The RT7736BGE from Richtek USA Inc. is a high-performance isolated flyback PWM controller designed for AC/DC offline switching applications. Part of the SmartJitter™ series, this controller IC delivers reliable power conversion with comprehensive fault protection for industrial, automotive, medical, and telecom applications.
Key Features & Benefits
- Wide Supply Voltage Range: 12V to 25V operation with 14.5V start-up voltage
- High Efficiency: 65kHz switching frequency with 75% maximum duty cycle
- Comprehensive Protection: Current limiting, overload, overvoltage, and short circuit protection
- Compact Design: Surface mount SOT-23-6 package for space-constrained applications
- Extended Temperature Range: -40°C to 85°C ambient operation for harsh environments
- RoHS Compliant: Meets environmental standards for global distribution
Applications
Ideal for isolated flyback power supplies in consumer electronics, industrial controls, LED lighting drivers, auxiliary power supplies, and battery chargers requiring reliable, efficient AC/DC conversion.
| Product attributes | Property Value |
| Manufacturer | Richtek USA Inc. |
| Product Series | SmartJitter™ |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 14.5 V |
| Voltage - Supply (Vcc/Vdd) | 12V ~ 25V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
