Richtek USA Inc. RT7736FGE
Regular price
Dhs. 355,879.75
Regular price
Dhs. 374,610.26
Sale price
Dhs. 355,879.75
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,879.75 | Dhs. 355,879.75 |
| 15+ | Dhs. 344,641.44 | Dhs. 5,169,621.60 |
| 25+ | Dhs. 337,149.23 | Dhs. 8,428,730.75 |
| 50+ | Dhs. 318,418.72 | Dhs. 15,920,936.00 |
| 100+ | Dhs. 280,957.70 | Dhs. 28,095,770.00 |
| N+ | Dhs. 56,191.54 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

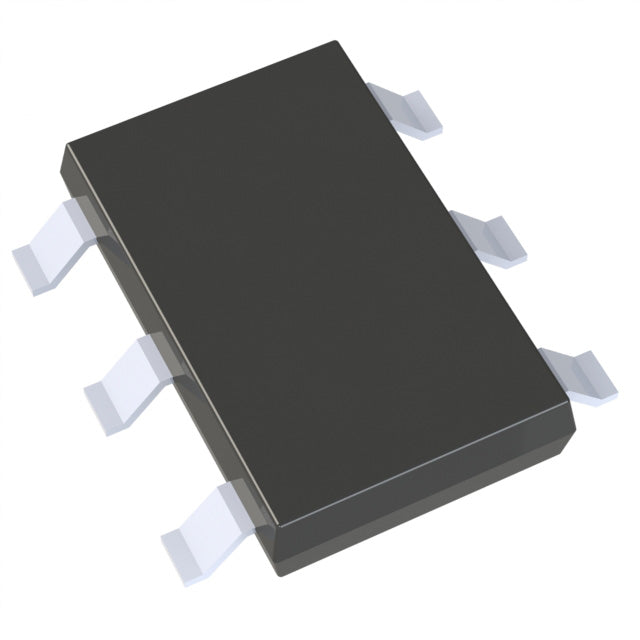

RT7736FGE - SmartJitter™ Flyback PWM Controller IC
The RT7736FGE from Richtek USA Inc. is a high-performance isolated flyback PWM controller designed for AC/DC offline switching applications. Part of the SmartJitter™ series, this controller IC delivers reliable power conversion with comprehensive fault protection for industrial, automotive, medical, and telecom applications.
Key Features & Benefits
- Isolated Flyback Topology - Provides electrical isolation between input and output for enhanced safety
- Wide Supply Voltage Range - Operates from 12V to 25V with 14.5V startup voltage
- 65kHz Switching Frequency - Optimized for efficiency and compact transformer design
- Comprehensive Protection - Current limiting, overload, overvoltage, and short circuit protection
- Compact SOT-23-6 Package - Surface mount design saves board space
- Industrial Temperature Range - Rated for -40°C to 85°C operation
- RoHS Compliant - Meets environmental standards for global markets
Applications
Ideal for AC/DC power supplies, auxiliary power modules, industrial control systems, smart home devices, LED drivers, and battery chargers requiring reliable isolated power conversion.
| Product attributes | Property Value |
| Manufacturer | Richtek USA Inc. |
| Product Series | SmartJitter™ |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 14.5 V |
| Voltage - Supply (Vcc/Vdd) | 12V ~ 25V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
