Richtek USA Inc. RT7736LGE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,879.75 | Dhs. 355,879.75 |
| 15+ | Dhs. 344,641.44 | Dhs. 5,169,621.60 |
| 25+ | Dhs. 337,149.23 | Dhs. 8,428,730.75 |
| 50+ | Dhs. 318,418.72 | Dhs. 15,920,936.00 |
| 100+ | Dhs. 280,957.70 | Dhs. 28,095,770.00 |
| N+ | Dhs. 56,191.54 | Price Inquiry |
Request Quote / Inquiry
RT7736LGE Flyback PWM Controller IC - Richtek SmartJitter™ Series
The RT7736LGE is a high-performance flyback PWM controller IC from Richtek's SmartJitter™ product family, designed for isolated AC-DC and DC-DC power supply applications. This advanced controller delivers reliable power conversion with comprehensive protection features, making it ideal for industrial, telecom, and consumer electronics applications requiring long-term availability and full traceability.
Key Features & Benefits
- Wide Input Voltage Range: 12V to 25V supply voltage with 14.5V start-up threshold
- Optimized Switching Performance: 65kHz switching frequency with 75% maximum duty cycle
- Comprehensive Protection: Current limiting, overload, overvoltage, and short circuit protection

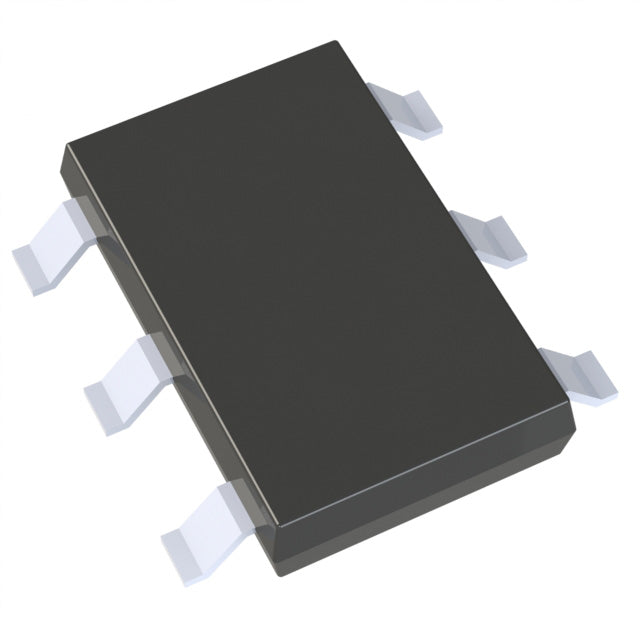

- Compact Surface Mount Package: Space-saving SOT-23-6 form factor
- Extended Operating Range: -40°C to +85°C ambient temperature rating
- RoHS Compliant: Meets environmental and regulatory standards
- Flyback Topology: Proven architecture for isolated power conversion
Typical Applications
The RT7736LGE is well-suited for AC-DC adapters, auxiliary power supplies, battery chargers, industrial control systems, telecom equipment, and any application requiring isolated flyback power conversion with robust protection and long lifecycle support.
Quality & Compliance
As an authorized distributor, we provide 100% traceable components with full manufacturer documentation, RoHS/REACH compliance certification, and long lifecycle commitment. All products ship with original manufacturer specifications and quality assurance.
| Product attributes | Property Value |
| Manufacturer | Richtek USA Inc. |
| Product Series | SmartJitter™ |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 14.5 V |
| Voltage - Supply (Vcc/Vdd) | 12V ~ 25V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
