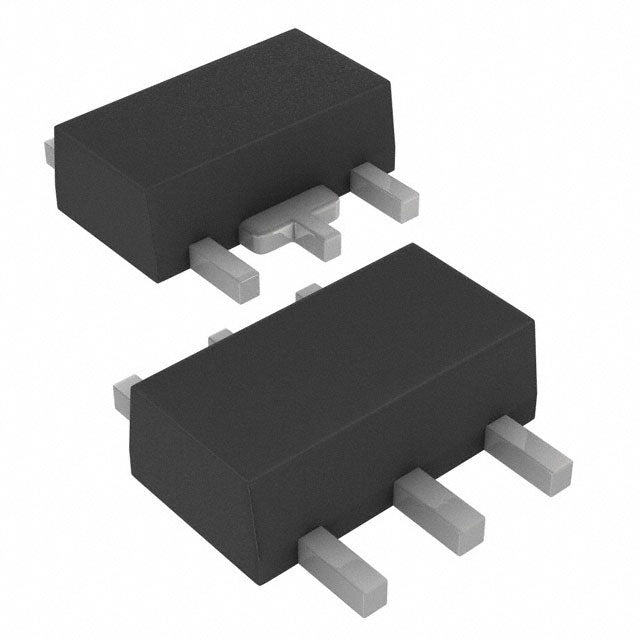

Richtek USA Inc. RT9069-25GX5
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.45 | $1.45 |
| 15+ | $1.41 | $21.15 |
| 25+ | $1.38 | $34.50 |
| 50+ | $1.30 | $65.00 |
| 100+ | $1.15 | $115.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Richtek USA Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.36V @ 10mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 3.5 µA |
| Current - Supply (Max) | 5 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| ROHS |  |
The Richtek RT9069-25GX5 is a 2.5V LDO regulator offering 200mA output with a low 3.5 µA quiescent current. Its SOT-89-5 package and low dropout voltage make it suitable for battery-powered and portable applications requiring efficient, stable power delivery.
- Low Power Consumption: 3.5 µA quiescent current ideal for battery devices.
- Compact Package: SOT-89-5 saves board space.
- Stable Output: Fixed 2.5V for consistent performance.
- Low Dropout: 0.36V at 10mA supports low input margins.
Battery-Powered Remote Controls
3.5 µA quiescent current preserves battery life in standby mode, while 200mA supports IR LED bursts.
Portable Audio Players
Stable 2.5V rail for low-voltage DSPs and DACs, ensuring consistent audio performance.
Smart Home Sensors
Low dropout allows operation from 3.0V batteries even as they discharge, extending usable life.
Wireless Modules
Provides clean power to Zigbee/Thread transceivers, reducing packet errors.
Metering Equipment
Reliable regulation for utility meters with long-term field deployment.
Handheld Test Tools
Compact SOT-89-5 package fits space-constrained multimeter designs.
- Q: What is the output voltage?
- A: Fixed 2.5V output.
- Q: What is the maximum current?
- A: 200mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; refer to datasheet.
- Q: What is the dropout voltage?
- A: 0.36V at 10mA load.
- Q: What is the quiescent current?
- A: 3.5 µA.
- Q: What package is used?
- A: SOT-89-5.
RT9069-25GX5.pdf
- Q: What is the output voltage?
- A: Fixed 2.5V output.
- Q: What is the maximum current?
- A: 200mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; refer to datasheet.
- Q: What is the dropout voltage?
- A: 0.36V at 10mA load.
- Q: What is the quiescent current?
- A: 3.5 µA.
- Q: What package is used?
- A: SOT-89-5.
