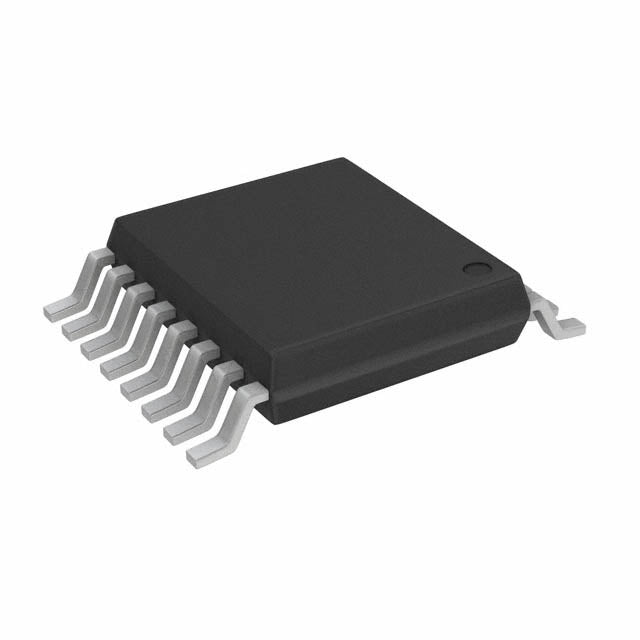

ABLIC Inc. S-8205AAJ-TCT1U
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.87 | $7.87 |
| 15+ | $1.81 | $27.15 |
| 25+ | $1.77 | $44.25 |
| 50+ | $1.67 | $83.50 |
| 100+ | $1.48 | $148.00 |
| N+ | $0.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | ABLIC Inc. |
| Product Series | S-8205A |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Protection |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 4 |
| Fault Protection | Over Current, Short Circuit |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| ROHS |  |
The ABLIC S-8205AAJ-TCT1U is a battery protection IC designed for 4-cell Lithium Ion battery packs. It integrates Over Current and Short Circuit protection to ensure safe operation. Operating from -40°C to 85°C and available in a 16-TSSOP package, it is suitable for a wide range of portable and industrial applications.
- Essential Protection: Over Current and Short Circuit protection enhances battery safety.
- Wide Temperature Range: -40°C to 85°C operation for demanding conditions.
- Compact Design: 16-TSSOP package saves PCB space.
- 4-Cell Optimization: Tailored for 4-cell Lithium Ion battery packs.
4-Cell Power Tool Batteries
Protects 4-cell Lithium Ion packs in power tools, providing Over Current and Short Circuit protection for high-drain motor applications.
Portable Electronics
Used in battery packs for laptops and tablets, ensuring safe operation with robust Short Circuit protection.
E-Bike Battery Modules
Ideal for 4-cell e-bike batteries, offering reliable protection against overcurrent during acceleration and hill climbing.
Backup Power Units
Employed in small UPS systems with 4-cell Lithium Ion batteries, providing essential safety features.
Industrial Handheld Devices
Protects batteries in rugged handheld terminals, with a wide temperature range suitable for outdoor and warehouse use.
- Q: What is the function of the S-8205AAJ-TCT1U?
- A: It is a battery protection IC for Lithium Ion batteries.
- Q: How many cells does this IC support?
- A: It supports a 4-cell configuration.
- Q: What fault protections are included?
- A: It provides Over Current and Short Circuit protection.
- Q: What is the operating temperature range?
- A: The operating temperature range is -40°C to 85°C (TA).
- Q: What package is the S-8205AAJ-TCT1U available in?
- A: It comes in a 16-TSSOP (0.173", 4.40mm Width) package.
