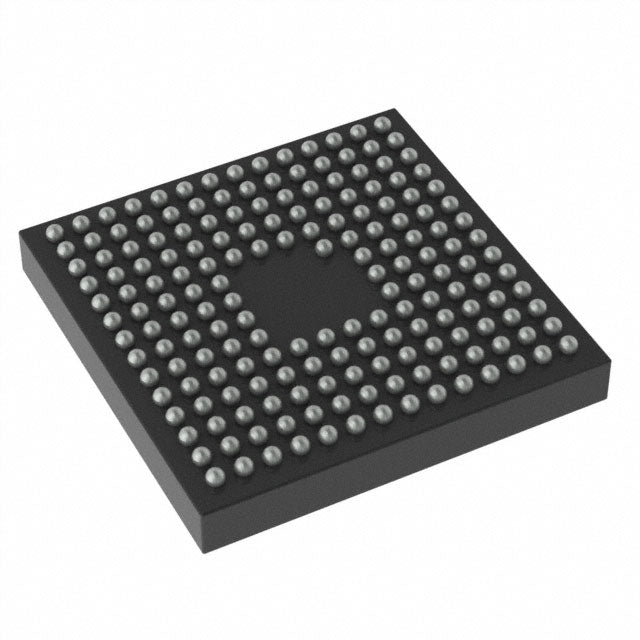

EPSON S1C31W74B201000
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.42 | $8.42 |
| 15+ | $8.15 | $122.25 |
| 25+ | $7.97 | $199.25 |
| 50+ | $7.53 | $376.50 |
| 100+ | $6.65 | $665.00 |
| N+ | $1.33 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | EPSON |
| Product Series | |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 21MHz |
| Connectivity | I2C, IrDA, QSPI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 71 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | - |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 181-VFBGA (8x8) |
| Package / Case | 181-VFBGA |
| ROHS |  |
The S1C31W74B201000 from EPSON is a high-performance ARM Cortex-M0+ microcontroller designed for applications requiring large memory and integrated display support. It features a 21MHz core, 512KB flash, and 128KB RAM, housed in a 181-VFBGA package. With a supply voltage of 1.8V to 3.6V and a rich set of peripherals including DMA, LCD controller, PWM, and WDT, it is ideal for advanced embedded systems. Its operating temperature range of -40°C to 85°C ensures reliability in various environments.
- Large memory capacity: 512KB flash and 128KB RAM enable complex firmware and data buffering.
- Integrated LCD controller: Simplifies display interfacing, reducing external components and cost.
- Efficient Cortex-M0+ core: Balances performance and power consumption for battery-operated devices.
- High-density packaging: 181-VFBGA allows for compact designs with many I/O connections.
- Comprehensive peripheral set: DMA, PWM, and WDT enhance system functionality and reliability.
Wearable Smart Displays
The integrated LCD controller and low power consumption make it perfect for smartwatches and fitness bands.
Industrial HMI Panels
With 512KB flash and 128KB RAM, it can handle complex user interfaces and communication protocols.
Medical Monitoring Devices
The Cortex-M0+ core and DMA support enable efficient data acquisition from sensors in patient monitors.
Smart Home Control Hubs
Its rich peripheral set, including PWM and WDT, supports controlling lights, HVAC, and security systems.
Portable Instrumentation
The wide voltage range and low power make it ideal for handheld multimeters and oscilloscopes.
Point-of-Sale Terminals
Large memory and LCD support allow for secure transaction processing and user-friendly displays.
- Q: What core does the S1C31W74B201000 use?
- A: It is based on the ARM Cortex-M0+ processor running at up to 21MHz.
- Q: How much memory is available?
- A: It offers 512KB flash and 128KB RAM, ample for complex applications.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V, suitable for portable and battery-operated devices.
- Q: Does it have an LCD controller?
- A: Yes, it includes an integrated LCD controller, ideal for display applications.
- Q: What package is it available in?
- A: It comes in a 181-VFBGA package, offering high pin density for advanced designs.
