Infineon Technologies S29AL016J70FFI022

Infineon S29AL016J70FFI022 - High-Performance 16Mbit NOR Flash Memory

The S29AL016J70FFI022 from Infineon Technologies is a premium-grade 16Mbit parallel NOR flash memory IC designed for mission-critical embedded systems requiring exceptional reliability and long-term availability. This AL-J series device delivers fast 70ns access time and operates across an industrial temperature range of -40°C to 85°C, making it ideal for aerospace, automotive, industrial control, medical equipment, and telecommunications applications.

Key Features & Benefits

• High-Speed Performance: 70ns access time ensures rapid data retrieval for time-sensitive applications
• Flexible Memory Organization: Configurable as 2M x 8 or 1M x 16 to match your system architecture
• Wide Operating Voltage: 2.7V to 3.6V supply range provides design flexibility and low power consumption
• Industrial Temperature Range: -40°C to 85°C operation guarantees reliability in harsh environments

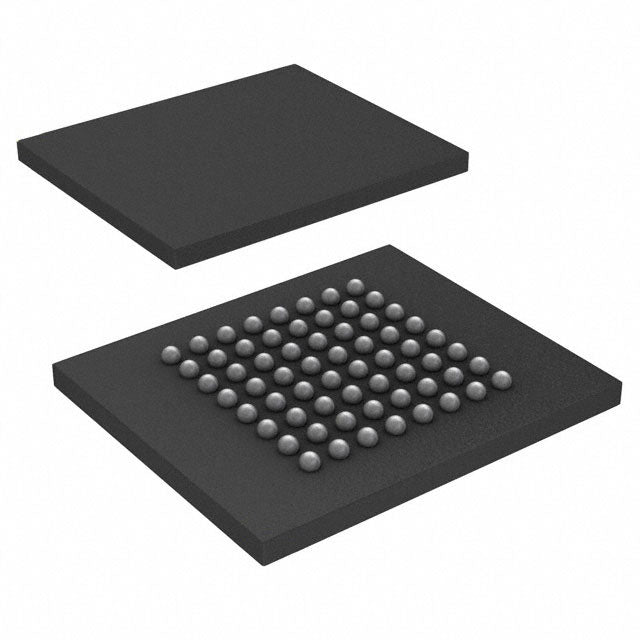

• Compact Surface Mount Package: 64-FBGA (13x11mm) footprint optimizes board space utilization
• RoHS Compliant: Environmentally friendly and meets global regulatory standards

Applications

This high-reliability NOR flash memory is engineered for demanding embedded applications including:

• Aerospace and defense systems requiring code storage and boot firmware
• Automotive ECUs and safety-critical control modules
• Industrial automation and process control equipment
• Medical diagnostic and monitoring devices
• Telecommunications infrastructure and networking equipment
• Data logging and parameter storage in harsh environments

Performance Advantages

The S29AL016J70FFI022 stands out in the market with its exceptional 70-nanosecond access time, enabling rapid boot sequences and real-time code execution in embedded systems. Its dual memory organization options (2M x 8 or 1M x 16) provide system architects with the flexibility to optimize data bus width for their specific application requirements, whether prioritizing throughput or minimizing pin count.

The wide 2.7V to 3.6V operating voltage range makes this NOR flash memory compatible with both legacy 3.3V systems and modern low-power 3.0V designs, reducing the need for voltage regulators and simplifying power management circuitry. This voltage flexibility, combined with the industrial temperature rating, ensures reliable operation in automotive under-hood environments, outdoor telecommunications equipment, and factory automation systems exposed to temperature extremes.

Quality & Reliability

As part of Infineon's AL-J series, this device benefits from advanced manufacturing processes and rigorous quality control standards. The RoHS-compliant 64-FBGA package provides excellent thermal performance and mechanical stability, while the compact 13x11mm footprint enables high-density PCB layouts in space-constrained applications.
