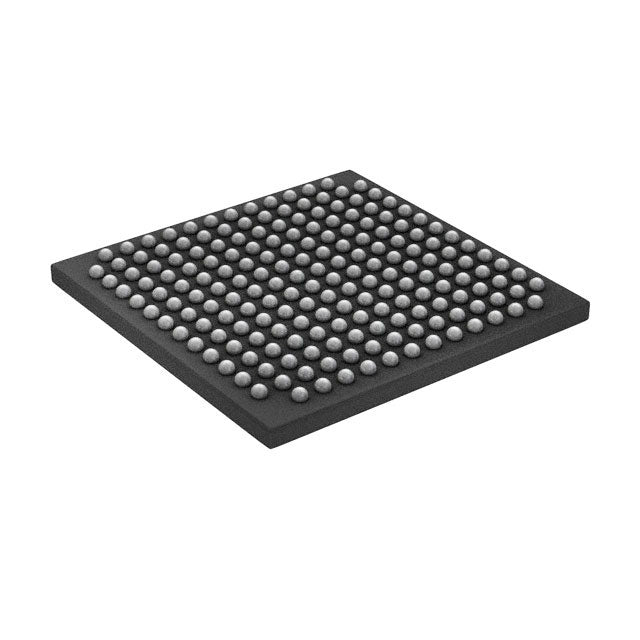

Infineon Technologies S6E2C19J0AGB1000A
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $58.44 | $58.44 |
| 15+ | $13.44 | $201.60 |
| 25+ | $13.15 | $328.75 |
| 50+ | $12.42 | $621.00 |
| 100+ | $10.96 | $1,096.00 |
| N+ | $2.19 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | FM4 S6E2C1 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core |
| Speed | 200MHz |
| Connectivity | CSIO, EBI/EMI, I2C, LINbus, SD, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 152 |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 32x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 192-FBGA (12x12) |
| Package / Case | 192-LFBGA |
| ROHS |  |
The Infineon S6E2C19J0AGB1000A is a 32-bit MCU featuring an ARM Cortex-M4F core at 200MHz. It provides 1.5MB flash and 192KB RAM, with a supply range of 2.7V to 5.5V. Housed in a 192-LFBGA package, it operates from -40°C to 125°C. Integrated DMA, I2S, LVD, POR, PWM, and WDT support complex embedded control applications.
- Large memory footprint: 1.5MB flash and 192KB RAM support complex firmware and data buffering.
- High-speed execution: 200MHz Cortex-M4F with FPU for real-time DSP tasks.
- Robust power management: 2.7-5.5V operation with LVD/POR for reliable startup.
- Industrial temperature grade: -40°C to 125°C for extreme environments.
Advanced Motor Drives
1.5MB flash enables storing multiple motor profiles and self-tuning algorithms for high-end drives.
Industrial Automation PLCs
200MHz speed and 192KB RAM handle fast logic execution and data logging.
Automotive Gateway Modules
Wide voltage range and 125°C rating support under-hood communication hubs.
Power Conversion Systems
PWM + DMA allow precise control of inverters and DC-DC converters.
Medical Pump Controllers
LVD/POR ensure safe operation during power fluctuations in critical care devices.
Smart Agriculture Sensors
I2S interface connects to environmental sensors for real-time monitoring.
- Q: What core does the S6E2C19J0AGB1000A use?
- A: It uses the ARM Cortex-M4F core with FPU.
- Q: What is the maximum clock speed?
- A: The CPU runs at 200MHz.
- Q: How much program memory is available?
- A: It has 1.5MB flash memory.
- Q: What is the RAM size?
- A: It includes 192KB SRAM.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 125°C.
