Infineon Technologies S6E2H16G0AGB3000A

Skip to product information
1 of 1

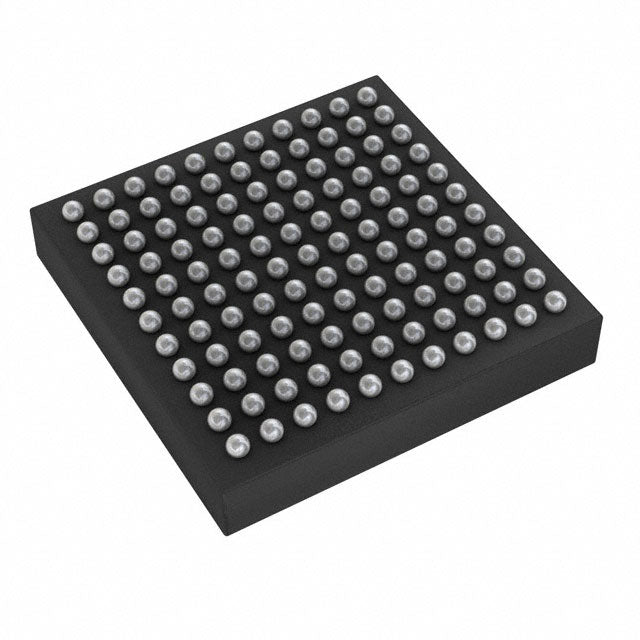

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $8.02
Regular price $8.44 Sale price $8.02
Sale Sold out
Quantity Unit Price Total Price
1 $8.02 $8.02
15+ $7.76 $116.40
25+ $7.60 $190.00
50+ $7.17 $358.50
100+ $6.33 $633.00
N+ $1.27 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Infineon Technologies
Product Series FM4 S6E2H1
Packaging Tray |
Core Processor ARM® Cortex®-M4F
Core Size 32-Bit Single-Core
Speed 160MHz
Connectivity CSIO, EBI/EMI, I2C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 100
Program Memory Size 544KB (544K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 24x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 125°C (TA)
Grade -
Qualification AEC -
Mounting Type Surface Mount
Supplier Device Package 121-FBGA (6x6)
Package / Case 121-TFBGA
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The Infineon S6E2H16G0AGB3000A is a high-performance 32-bit microcontroller built on the ARM Cortex-M4F core. Operating at 160MHz, it delivers the computational power needed for demanding embedded applications. With 544KB of flash memory and 64KB of RAM, it provides ample space for complex firmware. Its wide 2.7V to 5.5V supply voltage and extended temperature range make it suitable for industrial and automotive environments. The device includes essential safety and control peripherals such as DMA, LVD, POR, PWM, and WDT, all housed in a compact 121-TFBGA package.

  • High-Speed Processing: 160MHz Cortex-M4F core accelerates complex algorithms and real-time control tasks.
  • Wide Voltage Range: 2.7V-5.5V supply simplifies power design and supports direct battery operation.
  • Extended Temperature: -40°C to 125°C rating ensures reliable operation in harsh industrial and automotive settings.
  • Rich Peripheral Set: Integrated DMA, PWM, LVD, POR, and WDT reduce external component count and enhance system reliability.

Industrial Motor Control

The 160MHz Cortex-M4F with PWM and DMA enables precise, high-speed motor control loops for industrial drives and robotics.

Automotive Body Electronics

With a wide 2.7V-5.5V supply and 125°C rating, it suits automotive body controllers, lighting, and sensor modules.

Smart Grid & Energy Meters

Its 544KB flash and robust analog features support complex metering algorithms and communication protocols.

Building Automation

Ideal for HVAC controllers and smart lighting systems requiring reliable operation in harsh environments.

Portable Medical Devices

The low-power modes and 5.5V tolerance allow battery-powered diagnostic tools with extended temperature range.

General-Purpose Industrial I/O

Rich peripheral set (DMA, LVD, POR, WDT) simplifies PLC I/O modules and sensor interfaces.

Q: What is the core processor of the S6E2H16G0AGB3000A?
A: It uses an ARM Cortex-M4F core running at 160MHz.
Q: What is the operating voltage range?
A: It operates from 2.7V to 5.5V.
Q: What is the package type?
A: It comes in a 121-TFBGA package.
Q: What is the operating temperature range?
A: It is rated for -40°C to 125°C.
Base Product Number : S6E2H16G0AGB3000A
160MHz 32-bit 544KB Flash 64KB RAM ARM Cortex-M4F Automotive DMA Industrial MCU Motor Control PWM TFBGA-121
Q: What is the core processor of the S6E2H16G0AGB3000A?
A: It uses an ARM Cortex-M4F core running at 160MHz.
Q: What is the operating voltage range?
A: It operates from 2.7V to 5.5V.
Q: What is the package type?
A: It comes in a 121-TFBGA package.
Q: What is the operating temperature range?
A: It is rated for -40°C to 125°C.
