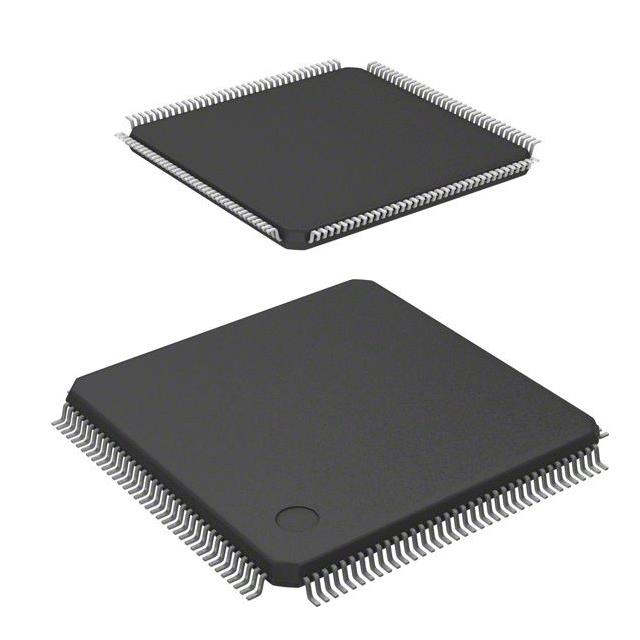

Infineon Technologies S6J311EJAASE2000A
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $117.16 | $117.16 |
| 15+ | $26.95 | $404.25 |
| 25+ | $26.36 | $659.00 |
| 50+ | $24.90 | $1,245.00 |
| 100+ | $21.97 | $2,197.00 |
| N+ | $4.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Infineon Technologies |
| Product Series | Traveo S6J3110 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-R5F |
| Core Size | 32-Bit Single-Core |
| Speed | 144MHz |
| Connectivity | CANbus, CSIO, I2C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 150 |
| Program Memory Size | 4MB (4M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 5.25V |
| Data Converters | A/D 64x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP Exposed Pad |
| ROHS |  |
The Infineon S6J311EJAASE2000A is a high-performance 32-bit MCU based on the ARM Cortex-R5F core at 144MHz. It offers 4MB flash and 384KB RAM, with a supply range of 3.5V to 5.25V. Integrated DMA, LVD, POR, PWM, and WDT provide robust system supervision. The 176-LQFP package with exposed pad supports demanding thermal environments up to 105°C.
- High-speed 144MHz core: Enables complex real-time algorithms with minimal latency.
- Large 4MB flash: Supports extensive firmware and over-the-air update capabilities.
- Ample 384KB RAM: Facilitates large data buffers and multitasking.
- Robust peripheral set: DMA, PWM, and safety features reduce external component count.
Advanced Engine Management
The 144MHz core and 4MB flash handle multi-cylinder fuel injection and ignition timing algorithms.
Electric Vehicle Inverters
High-speed PWM and 384KB RAM support field-oriented control of traction motors.
Industrial Robotics
DMA and multiple peripherals enable synchronized control of six-axis robot arms.
Smart Grid Protection Relays
Fast processing and WDT ensure reliable fault detection in power distribution networks.
Off-Highway Vehicle Displays
The 176-LQFP package and 105°C rating suit dashboard controllers in tractors and excavators.
High-End PLCs
4MB flash allows extensive ladder logic and communication protocol stacks.
- Q: What is the maximum clock speed of the S6J311EJAASE2000A?
- A: It runs at 144MHz on the ARM Cortex-R5F core.
- Q: How much flash memory does it have?
- A: It provides 4MB of flash memory for large application code.
- Q: What is the RAM size?
- A: It includes 384KB of RAM, supporting complex data processing.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C, suitable for most industrial and automotive applications.
