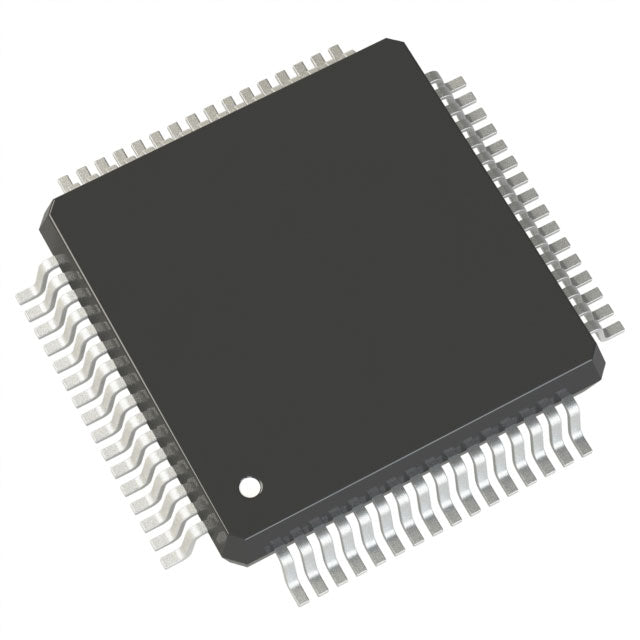

NXP USA Inc. S9S08DN48F2MLH
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.53 | $25.53 |
| 15+ | $5.87 | $88.05 |
| 25+ | $5.74 | $143.50 |
| 50+ | $5.42 | $271.00 |
| 100+ | $4.79 | $479.00 |
| N+ | $0.96 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | S08 |
| Packaging | Tray | NULL |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I2C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 53 |
| Program Memory Size | 48KB (48K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1.5K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The NXP S9S08DN48F2MLH is a 8-bit MCU built on the S08 core, delivering 40MHz performance with 48KB flash and 2KB RAM. Its 2.7V-5.5V supply range and extended temperature rating make it a reliable choice for industrial and automotive control systems. Integrated LVD, POR, PWM, and WDT reduce external component count.
- Wide voltage range (2.7V-5.5V): Direct battery operation without external regulators.
- High-temperature capability (125°C): Suitable for under-hood and industrial environments.
- Integrated safety peripherals (LVD, POR, WDT): Enhances system reliability.
- 64-LQFP package: Compact footprint with ample I/O for control applications.
Industrial Motor Control
With 40MHz S08 core and PWM modules, it handles sensorless BLDC and PMSM control loops with deterministic timing.
Automotive Body Electronics
Wide 2.7V-5.5V supply and -40°C to 125°C range support direct battery connection in door modules and lighting controllers.
Smart Sensors
48KB flash and 2KB RAM are sufficient for calibration tables and signal conditioning in pressure or temperature transmitters.
Portable Medical Devices
Low-power modes and LVD ensure reliable battery monitoring in glucose meters and infusion pumps.
HVAC Controllers
Multiple PWM channels drive fan and compressor stages, while WDT ensures fail-safe operation in unattended environments.
Power Tools
High-temperature tolerance and robust I/O handle vibration and heat in brushless drill and saw controllers.
- Q: What is the operating voltage range of the S9S08DN48F2MLH?
- A: It operates from 2.7V to 5.5V, making it suitable for industrial and automotive power rails.
- Q: What is the maximum CPU speed?
- A: The S08 core runs at up to 40MHz, providing balanced performance for control applications.
- Q: What package is available?
- A: It comes in a 64-LQFP package, ideal for space-constrained PCB designs.
- Q: Does it include safety features?
- A: Yes, it integrates LVD (Low-Voltage Detect), POR (Power-On Reset), PWM, and WDT for robust operation.
