NXP USA Inc. SC33771CTA1MAER2
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $45.27 | $45.27 |
| 15+ | $10.41 | $156.15 |
| 25+ | $10.19 | $254.75 |
| 50+ | $9.62 | $481.00 |
| 100+ | $8.49 | $849.00 |
| N+ | $1.70 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Multi-Function Controller |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 7 ~ 14 |
| Fault Protection | Over Temperature, Over/Under Voltage |
| Interface | SPI |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |

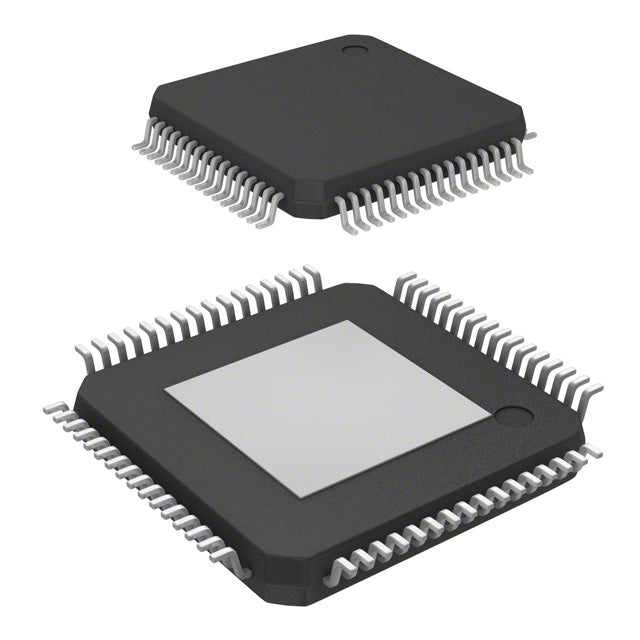

| Package / Case | 64-LQFP Exposed Pad |
| Supplier Device Package | 64-LQFP (10x10) |
| ROHS |  |
The NXP SC33771CTA1MAER2 is a multi-function controller designed for advanced battery management in Lithium Ion applications. It supports 7 to 14 cells and integrates critical fault protection including Over Temperature and Over/Under Voltage. With an SPI interface and a wide operating temperature range of -40°C to 105°C, this controller is ideal for automotive and industrial battery systems requiring precise monitoring and robust safety features.
- Enhanced Safety: Integrated Over Temperature and Over/Under Voltage protection safeguards battery packs from hazardous conditions.
- Wide Temperature Operation: Rated for -40°C to 105°C, suitable for harsh automotive and industrial environments.
- Scalable Cell Support: Manages 7 to 14 cells, offering flexibility for various battery pack configurations.
- High-Speed Communication: SPI interface enables fast and reliable data transfer for real-time monitoring and control.
Electric Vehicle Battery Management
Manage 7-14 series Lithium Ion cells in EV battery packs with robust Over/Under Voltage and Over Temperature protection, ensuring safe operation across -40°C to 105°C.
Energy Storage Systems (ESS)
Monitor and control large-format Lithium Ion battery racks in grid-tied or off-grid ESS, leveraging the SPI interface for high-speed data acquisition and reliable fault detection.
Industrial Battery Backup (UPS)
Implement precise cell monitoring in UPS systems for 7-14 cell Lithium Ion strings, maintaining battery health and preventing thermal runaway in demanding industrial environments.
High-Capacity Power Tools
Enable safe and efficient operation of professional-grade power tools using 7-14 cell Lithium Ion packs, with protection against over-temperature and voltage extremes.
Electric Bicycles and Scooters
Provide reliable battery management for e-mobility applications, ensuring cell balancing and protection for 7-14 cell Lithium Ion battery packs in varying outdoor conditions.
- Q: What is the function of the SC33771CTA1MAER2?
- A: It is a Multi-Function Controller for battery management systems.
- Q: What battery chemistry does it support?
- A: It is designed for Lithium Ion batteries.
- Q: How many battery cells can it manage?
- A: It supports 7 to 14 cells in series.
- Q: What fault protection features does it include?
- A: It provides Over Temperature and Over/Under Voltage protection.
- Q: What communication interface does it use?
- A: It uses the SPI interface for communication.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C (TA).
SC33771CTA1MAER2.pdf
- Q: What is the function of the SC33771CTA1MAER2?
- A: It is a Multi-Function Controller for battery management systems.
- Q: What battery chemistry does it support?
- A: It is designed for Lithium Ion batteries.
- Q: How many battery cells can it manage?
- A: It supports 7 to 14 cells in series.
- Q: What fault protection features does it include?
- A: It provides Over Temperature and Over/Under Voltage protection.
- Q: What communication interface does it use?
- A: It uses the SPI interface for communication.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C (TA).
