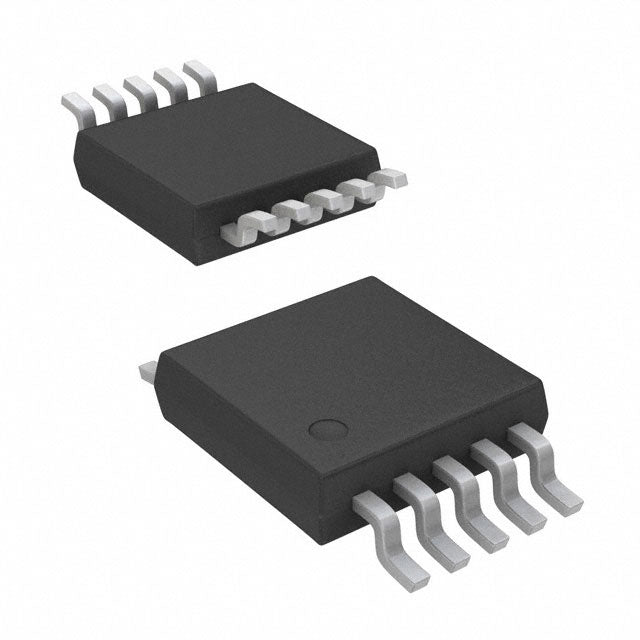

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
SC4808AIMSTRT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,916.57 AED | Dhs. 355,916.57 AED |
| 15+ | Dhs. 344,677.10 AED | Dhs. 5,170,156.50 AED |
| 25+ | Dhs. 337,184.12 AED | Dhs. 8,429,603.00 AED |
| 50+ | Dhs. 318,451.67 AED | Dhs. 15,922,583.50 AED |
| 100+ | Dhs. 280,986.77 AED | Dhs. 28,098,677.00 AED |
| N+ | Dhs. 56,197.35 AED | Price Inquiry |
Couldn't load pickup availability
SC4808AIMSTRT - High-Performance PWM Controller IC
The SC4808AIMSTRT from Semtech Corporation is a versatile PWM controller IC designed for high-frequency switching power supply applications. This advanced controller supports multiple topologies including full-bridge, half-bridge, and push-pull configurations, making it ideal for aerospace, automotive, industrial, and telecommunications power management systems.
Key Features & Benefits
- High Switching Frequency: Up to 1MHz for compact, efficient power supply designs
- Wide Supply Voltage Range: 7.5V to 18V operation with 12V start-up voltage
- Multiple Topology Support: Full-bridge, half-bridge, and push-pull configurations
- Advanced Protection: Current limiting fault protection for enhanced reliability
- Precision Control: 49% duty cycle with frequency control and sync capabilities
- Extended Temperature Range: -40°C to 150°C (TJ) for demanding environments
- Compact Package: Surface mount 10-MSOP for space-constrained designs
Applications
This PWM controller is perfectly suited for isolated DC-DC converters, telecom power supplies, industrial power systems, and high-density server power architectures where efficiency, reliability, and compact design are critical.
Authorized Distributor
We provide 100% authentic Semtech components with full manufacturer documentation, traceability certificates, and long lifecycle availability to support your critical programs and mitigate obsolescence risk.
| Product attributes | Property Value |
| Manufacturer | Semtech Corporation |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 18V |
| Duty Cycle | 49% |
| Frequency - Switching | Up to 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting |
| Control Features | Frequency Control, Sync |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
