Semtech Corporation SC804IML.TRT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.46 | $3.46 |
| 15+ | $3.35 | $50.25 |
| 25+ | $3.28 | $82.00 |
| 50+ | $3.09 | $154.50 |
| 100+ | $2.73 | $273.00 |
| N+ | $0.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Semtech Corporation |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Multi-Chemistry |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Timer |
| Fault Protection | Over Current, Over Temperature, Over Voltage |
| Charge Current - Max | 1.5A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 14V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

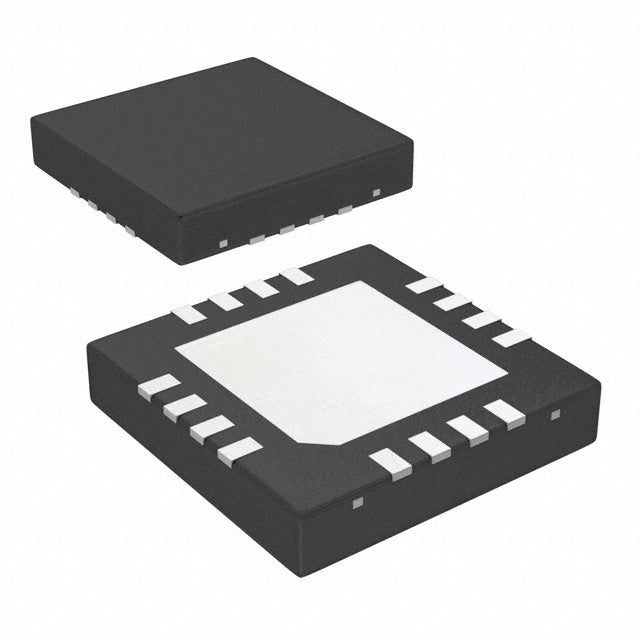

| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-MLPQ (4x4) |
The SC804IML.TRT is a high-performance multi-chemistry battery charger IC from Semtech Corporation, designed to deliver reliable and efficient charging for single-cell battery applications. This advanced charger IC features a maximum charge current of 1.5A, supports a battery pack voltage of 4.2V, and includes a programmable timer for flexible charging control. With comprehensive fault protection including over current, over temperature, and over voltage safeguards, the SC804IML.TRT ensures safe and dependable operation across a wide temperature range of -40°C to 85°C.
Applications and Benefits
The SC804IML.TRT is ideal for portable electronics, IoT devices, wearables, and industrial applications requiring efficient single-cell battery charging. Its compact 16-MLPQ (4x4) surface mount package makes it perfect for space-constrained designs, while the multi-chemistry support provides flexibility for various battery types. The programmable constant current charging and built-in safety features ensure optimal battery performance and longevity.
