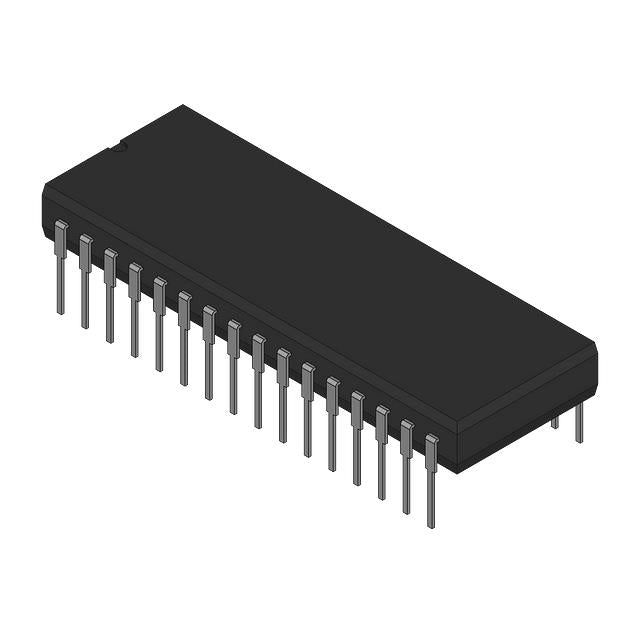

Analog Devices Inc. SDC1768411B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $458.34 | $458.34 |
| 15+ | $443.86 | $6,657.90 |
| 25+ | $434.21 | $10,855.25 |
| 50+ | $410.09 | $20,504.50 |
| 100+ | $361.85 | $36,185.00 |
| N+ | $72.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | SDC1768 |
| Packaging | Bulk | |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | - |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | - |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | - |
| Architecture | - |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | - |
| Voltage - Supply, Digital | - |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Grade | - |
| Qualification | - |
| Package / Case | 32-DIP (0.900", 22.90mm) |
| Supplier Device Package | 32-DIP |
The SDC1768411B is a robust 14-bit, 4-channel analog-to-digital converter from Analog Devices, designed for high-reliability applications. Its parallel interface ensures straightforward integration with legacy microprocessors and FPGAs. With a wide operating temperature range of -55°C to 125°C and a through-hole 32-DIP package, it is ideal for military, aerospace, and industrial environments where durability and multi-channel precision are paramount.
- Quad-Channel Input: Four ADC channels in one package reduce board space and cost for multi-sensor systems.
- Extended Temperature Range: -55°C to 125°C ensures reliable operation in harsh military and industrial settings.
- Simple Parallel Interface: Easy to connect to legacy controllers without complex serial protocols.
- Flexible Reference: Internal or external reference options provide design flexibility for different accuracy needs.
- Durable DIP Package: Through-hole package is easy to solder and replace in field-serviceable equipment.
Military & Aerospace Data Acquisition
The -55°C to 125°C temperature range and 14-bit resolution make it suitable for flight control and engine monitoring systems that require high accuracy in extreme conditions.
Multi-Channel Industrial Monitoring
With 4 channels, it can simultaneously digitize multiple sensor outputs (e.g., pressure, temperature, vibration) in industrial process control, reducing system complexity.
Legacy System Replacement
The parallel interface and DIP package allow drop-in replacement in older avionics or instrumentation systems, extending their service life without redesign.
Scientific Instrumentation
High resolution and multi-channel capability support precise data logging in physics experiments and environmental monitoring stations.
Automotive Test Systems
Its wide temperature range and parallel output enable reliable operation in engine test benches and vehicle dynamics measurement equipment.
Robotics & Motion Control
Multiple channels can read encoder and current sensor data simultaneously, enabling precise servo loop control in industrial robots.
- Q: What is the resolution of the SDC1768411B?
- A: It is a 14-bit ADC.
- Q: How many channels does it have?
- A: It has 4 input channels.
- Q: What interface does it use?
- A: It uses a parallel digital interface.
- Q: What is the operating temperature range?
- A: It operates from -55°C to 125°C, suitable for military/aerospace.
- Q: What package is it available in?
- A: It comes in a 32-DIP (0.900", 22.90mm) package.
- Q: Does it require an external reference?
- A: It supports both external and internal references.
